Yamaha YHT-5960U 5.1-Channel Home Theater System with 8K HDMI and MusicCast

Availability:
Low stock
Sale Sale
Original price $679.95
Original price $679.95 - Original price $679.95
Original price $679.95
Current price $579.95
$579.95 - $579.95
Current price $579.95

Yamaha YHT-5960U 5.1-Channel Home Theater System with 8K HDMI and MusicCast

Enjoy a complete, all-in-one home theater system with the YHT-5960U. This 5.1-channel surround sound system will transform how you listen and watch at home with a powerful subwoofer and complete set of surround speakers. The YHT-5960U home-theater-in-a-box includes an AV receiver with the latest in video processing, Dolby TrueHD, DTS-HD Master Audio, wireless streaming and more.

CINEMA DSP 3D
This unique Yamaha proprietary sound field creation technology was created by combining measured sound field data with digital signal processing. Yamaha collected sound field data from famous concert halls and music clubs around the world, utilizing its wealth of experience in the fields of concert hall design, public address and mixing. By digitizing this vast trove of information and incorporating it into dedicated LSI devices, it effectively reproduces the spaces of concert halls and music clubs in your home. Immerse yourself in the astounding realism of your movies and enter a world of profound theater sound.

Compressed Music Enhancer
When music is encoded into a digitally compressed format like MP3, the frequency response suffers. The Yamaha Compressed Music Enhancer employs sophisticated digital signal processing using exclusive algorithms to restore what was lost, so the music always sounds the way it should.

HDR and HDR10+
HDR (High Dynamic Range) video provides incredible contrast, smooth tone and rich, bright colors‚ÄĒgiving you full, high-definition enjoyment with an exceptionally realistic and natural picture quality.

HDR10+ greatly improves dynamic range (the ratio of light to dark) of video content on a scene-by-scene (or even frame-by-frame) basis. Also, using frame-by-frame metadata, it improves the scene characteristics between bright and dark so that important detail can remain. This enables displays to reproduce images more realistically, adhering to the creator's intent.

4K120AB, 8K60B and 4K60
Supports end-to-end 8K/4K resolutions and higher refresh rate solutions with a single upgraded cable for seamless integration within the HDMI eco-system. 8K delivers a super-immersive viewing experience with 2x the horizontal and vertical resolution of 4K, and 4 times as many pixels; and combined with 60Hz refresh rate enables smooth and sharp viewing of content with high-speed action. 4K120 enables ultra-fast motion UHD images to be crisp and razor sharp; allowing sports, action movies, high-performance gaming and VR to benefit significantly. It also supports Dolby Vision‚ĄĘ and Hybrid Log-Gamma.

Enhanced Media and Gaming (ALLM and VRR)
Enhanced media and gaming features ensure an added level of smooth and seamless motion and transitions for gaming, movies and video. They include: Auto Low Latency Mode (ALLM), which enables the ideal latency setting to automatically be set allowing for smooth, lag-free and uninterrupted viewing and interactivity; Variable Refresh Rate (VRR) reduces or eliminates lag, stutter and frame tearing for more fluid and detailed gameplay.

AV Setup Guide App for Initial Setup
No worries, no confusion. Use this special app to receive expert set up assistance for your AV receiver and source devices. It even guides you through various other settings such as speaker connections, TV and source device connections and power amplifier assignments.

Simple and Easy with the MusicCast App
Use your smartphone or tablet together with the MusicCast app to operate the AV receiver and change settings quickly and easily. The app lets you easily and conveniently play music from your favorite streaming services.

Voice Control (Alexa, Google Assistant and Siri)
Easily works with Alexa, Google Assistant and Siri (via Airplay 2), so your AV receiver is always at your command and your whole home can come alive.

YPAO‚ĄĘ
YPAO (Yamaha Parametric room Acoustic Optimizer) analyzes the room acoustics and your system, then precisely adjusts various audio parameters to provide the best sound for your room. Simply by placing the supplied microphone at your listening position and switching YPAO on, the system is automatically calibrated for optimum performance in your home theater room.

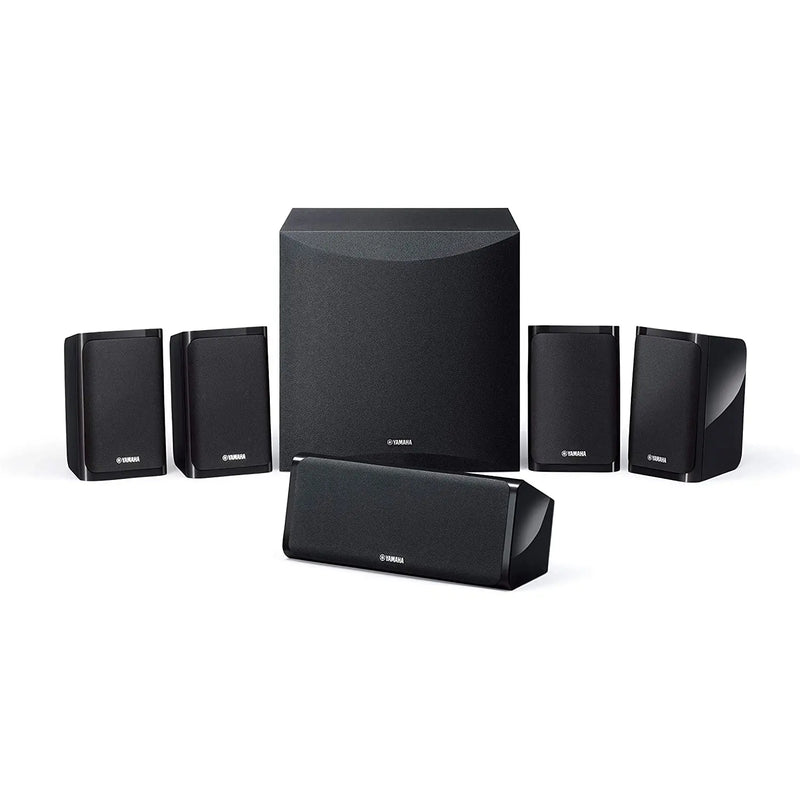

Traditional Speaker Setup
This 5.1-channel speaker system includes four surround sound bookshelf speakers, one center channel speaker and one subwoofer. The speakers feature the elegant beauty of a Ô¨Āne musical instrument, offering a stylish appearance that matches their high sound quality. Its compact design allows ease of placement in any convenient location within the listening room. Keyhole openings in the back allow for easy wall mounting and speaker wire is included, perfectly matched for each speaker.

SCENE Buttons with the Ability to Preset Songs and Stations
Easily program up to 4 different preset scenarios using 4 SCENE buttons. You can preset them for different inputs, as well as a sound field program, Music Enhancer, HDMI output and more. The inputs can be set to specific sources, such as an FM or Internet radio station, a station on a streaming service, a USB device or a song on a PC or NAS (Network-attached Storage). Once you’ve set the buttons, simply press one on the main unit or the remote control to power on the receiver and hear your desired music. The buttons can be reset at any time.

Stream it All
Explore a world of music with music streaming services built-in. Synchronizing your playlists and tracks from your smartphone or computer to the AV receiver, music streaming services make it easy to either listen to your favorites or discover new music.

AirPlay 2
Hey Siri. Play music in the kitchen and living room.

AirPlay 2 adds the ability to stream Apple Music and other streaming services to multiple MusicCast devices throughout your home. Easily control it from your iPhone or iPad, link it with a HomePod, or simply utilize voice control and ask Siri for an assist.

eARC
Unlock the full potential of your 4K content. Enhanced Audio Return Channel (also known as eARC) is the next generation of ARC ‚Äď available in the industry-leading AV receivers from Yamaha.

eARC delivers full-resolution, multi-channel audio formats such as Dolby¬ģ TrueHD and DTS-HD¬ģ through your existing HDMI connection, giving you the most realistic surround sound experience for immersing yourself in your favorite movies and moments.

Features:

  • 5.1-channel 80-Watt powerful surround sound system
  • 4K60, 4K120AB and 8K60B HDMI 2.1 with HDCP 2.3 and eARC (4 in/1 out)
  • Dolby Vision™, Hybrid Log-Gamma and BT.2020
  • Supports enhanced media and gaming – ALLM and VRR
  • YPAO automatic room calibration
  • Wi-Fi, Bluetooth®, MusicCast multi-room audio, AirPlay 2 and Spotify Connect
  • Voice control with Amazon Alexa, Siri® (via AirPlay 2) and Google Assistant
  • Pandora®, Spotify, Napster, SiriusXM, TIDAL, Deezer, Qobuz, Amazon Music HD
  • Front, rear and center speakers place easily in your room
  • Designated subwoofer for powerful bass
  • Speaker wire perfectly matched for each speaker

Specification:

  • Amplifier Section
  • Channels: 5.2
  • Rated Output Power (20Hz-20kHz, 2ch driven): 80 W (6 ohms, 0.06% THD)
  • High Slew Rate Amplifier: Yes

Surround Sound Processing

  • Cinema DSP: Yes
  • DSP Programs: 17
  • Dialog Level Adjustment: Yes
  • Virtual Presence Speaker: Yes
  • Virtual Surround Back Speaker: N/A
  • Dialogue Lift: N/A
  • SILENT Cinema / Virtual Cinema DSP: Yes
  • Dolby Atmos: N/A
  • Dolby Atmos Height Virtualization: N/A
  • Dolby TrueHD: Yes
  • Dolby Digital Plus: Yes
  • Dolby Surround: N/A
  • DTS:X: N/A
  • DTS-HD Master Audio: Yes

Audio Features

  • File Format: MP3 / WMA / MPEG-4 AAC: up to 48 kHz / 16-bit, ALAC: up to 96 kHz / 24-bit, FLAC: up to 192 kHz / 24-bit, WAV / AIFF: up to 192 kHz / 32-bit, DSD: up to 11.2 MHz
  • Pure Direct: Yes
  • Compressed Music Enhancer: Yes
  • YPAO Multipoint Measurement: N/A
  • YPAO Volume: Yes
  • Adaptive DRC (Dynamic Range Control): Initial Volume and Maximum Volume Setting
  • Initial Volume and Maximum Volume Setting:Yes
  • Bi-amp Capability:Yes
  • Audio Delay: Yes (0-500 ms)
  • DA Converter: 384 kHz / 32-bit BB PCM5101A
  • YPAO Sound Optimization: Yes

Video Features

  • HDMI eARC: Yes
  • HDMI Audio Return Channel: Yes
  • HDMI Pass-through: Yes
  • HDMI Upscaling: Yes up to 4K
  • Dolby Vision: HDR 10+: Yes
  • VRR & ALLM: Yes
  • 4K Ultra HD Pass-through and Upscaling: Yes
  • HDMI 3D Pass-through: Yes
  • Deep Color / x.v.Color / 24Hz Refresh Rate / Auto Lip-Sync:
  • VRR/ALLM/QMS/QFT: -

Connectivity

  • MusicCast Surround: Yes
  • Wi-Fi: Yes (2.4 / 5 GHz)
  • AirPlay 2: Yes
  • Bluetooth: Yes (SBC / AAC)
  • Phono Input: N/A

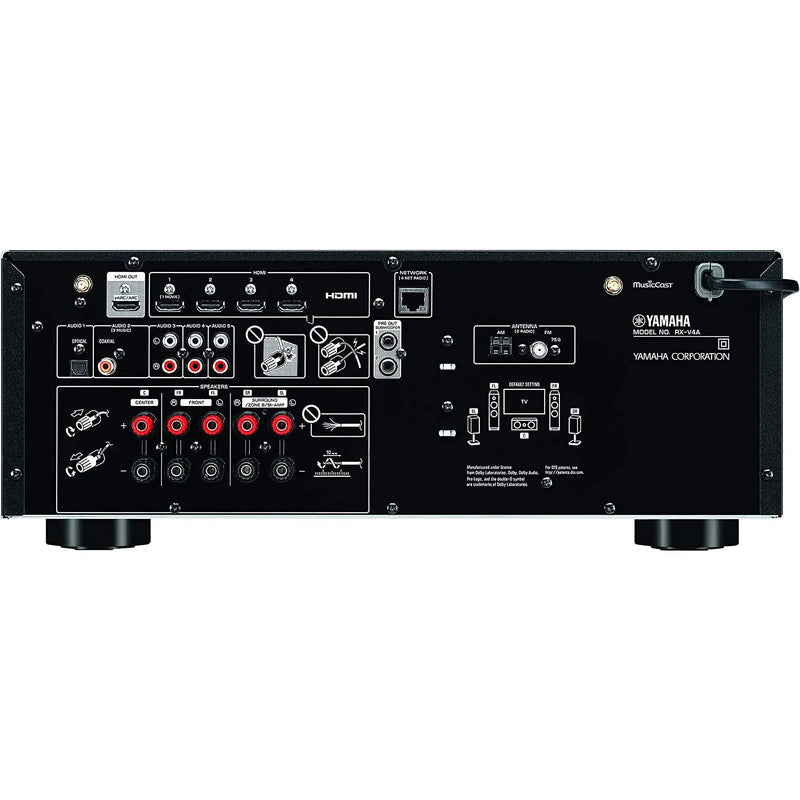

Extensive Connections

  • HDMI Input/Output: 4 / 1 (HDR / Dolby Vision™ / HLG and BT.2020-compatible)
  • HDMI CEC: Yes
  • USB Input: Yes
  • Network Port: Yes
  • Front AV Input: USB
  • Digital Audio Input / Output: Optical : 1 / 0
  • Digital Audio Input / Output: Coaxial: 1 / 0
  • Analog Audio Input / Output: 3 / 0
  • Preout: 0.2-ch
  • Headphone Output: 1
  • Composite Video Input / Output: N/A

Tuner Section

  • FM / AM Tuner: Yes

User Interface

  • On-Screen Display: Graphical User Interface
  • SCENE: Yes (4 sets)
  • App Control: Yes (iPhone / iPad / Android phone / tablet)
  • Web Browser Control: N/A
  • Remote Control Unit: Yes

General

  • Standby Power Consumption (IR only): 0.1 W
  • Auto Power Standby: Yes
  • ECO Mode: Yes
  • Dimensions (W x H x D): 17-1/8" x 6-3/4" x 14-7/8" D (with antenna up:17-1/8" x 9-5/8" x 14-7/8")

Speaker Package

  • Speaker System
  • System Frequency Response: 28 Hz–25 kHz
  • Channels: 5.1
  • Impedance: 6 ohms (without subwoofer)

Front Speaker

  • Type: Full-range bass-reflex
  • Driver: 2-3/4" full-range cone
  • Nominal Input Power: 30 W
  • Maximum Input Power: 100 W
  • Sensitivity: 83 dB / 2.83 V / 1 m
  • Dimensions (W x H x D): 4-3/8 " x 6-7/8" x 4-5/8"

Center Speaker

  • Type: Full-range acoustic suspension
  • Driver: 2-3/4" full-range cone
  • Nominal Input Power: 30 W
  • Maximum Input Power: 100 W
  • Sensitivity: 84 dB / 2.83 V / 1 m
  • Dimensions (W x H x D): 10-7/8" x 4-3/8" x 4-5/8"

Surround Speaker

  • Type: Full-range bass-reflex
  • Driver: 2-3/4" full-range cone
  • Nominal Input Power: 30 W
  • Maximum Input Power: 100 W
  • Sensitivity: 83 dB / 2.83 V / 1 m
  • Dimensions (W x H x D): 4-3/8" x 6-7/8" x 4-5/8"

Subwoofer

  • Type: Advanced YST II
  • Driver: 8" cone
  • Output Power: 50 W (5 ohms, 100 Hz, 10% THD)
  • Dynamic Power: 100 W (5 ohms)
  • Frequency Response: 28–200 Hz
  • Twisted Flare Port: Yes
  • Power Consumption: 40W
  • Dimensions (W x H x D): 11-1/2" x 11-1/2" x 13-3/8"

Safety Brochure
User Guide



  • Yamaha YHT-5960U 5.1-Channel MusicCast Home Theater System
  • Remote Control
  • Calibration Microphone
  • AM Antenna
  • FM Antenna
  • Speaker Wire
  • Limited 2-Year Warranty
