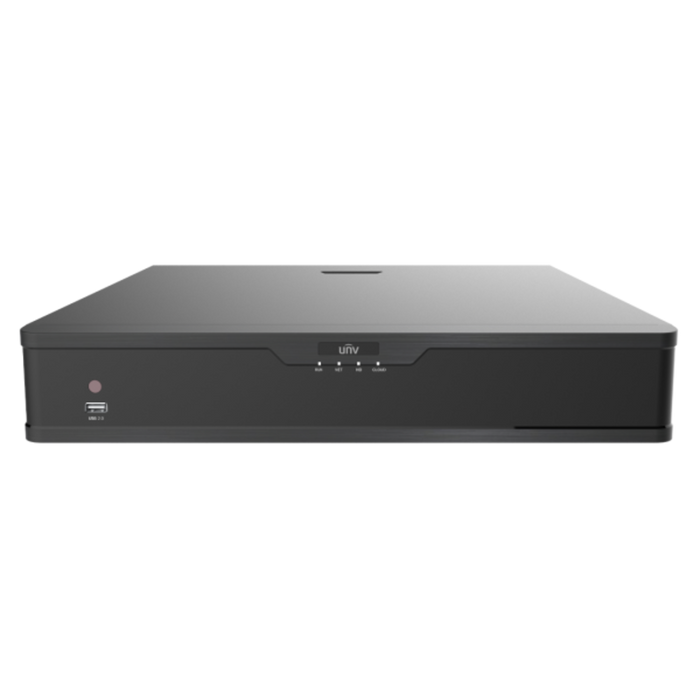

Uniview NVR501-08B-P8 8 Channels IP Network Video Recorder with PoE

Specifications:

Video/Audio Input

• IP Video Input: 8-ch
• Audio Input: 1-ch, RCA

Network

• Incoming Bandwidth: 80Mbps
• Outgoing Bandwidth: 64Mbps
• Remote Users: 28
• Protocols: TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP
• Browser: IE(IE10/11) for Windows,Firefox (version 52.0 and above) for Windows, Chrome(version 45 and above) for Windows, Edge(version 79 and above) for Windows

Video/Audio Output

• HDMI/VGA Output HDMI: 4K (3840x2160)@30, 1920x1080p@60, 1920x1080p@50, 1600x1200@60, 1280x1024@60, 1280x720@60, 1024x768@60
• VGA: 1920x1080p@60, 1920x1080p@50, 1280x1024@60, 1600x1200@60, 1280x720@60, 1024x768@60
• Recording Resolution    8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Audio Output: 1-ch, RCA
• Two-way Audio: 1-ch, RCA(Using the audio input and output)
• Audio Compression: G.711A, G.711U
• Synchronous Playback: 8-ch
• Liveview display: 1/4/6/8/9
• Corridor Mode Screen: 3/4/5/7/9

Decoding

• Decoding format: Ultra 265/H.265
• Live view/Playback: 8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
• Capability: 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 9 x 4MP@25, 10 x 3MP@30, 16 x 1080p@30

Hard Disk

• SATA: 1 SATA interfaces
• Capacity: Up to 8TB for each disk(The maximum HDD capacity varies with environment temperature)

Smart

• VCA Detection by Camera: Intrusion Detection, Cross Line Detection, Enter Area, Leave Area, Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, SMD(Smart Motion Detection)
• VCA Search: Behavior Search, People Counting Report
• People counting: People Flow Counting, Crowd Density Monitoring

General Alarm

• General Alarm: Motion, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
• Alert Alarm: IP Conflict, Network Disconnected, Disk Offline , Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

External Interface

• Network Interface: 1 RJ-45 10M/100M self-adaptive Ethernet Interface
• USB Interface: Front panel: 1 x USB2.0, Rear panel: 1 x USB3.0
• RS232: NA
• RS485: NA
• Alarm In: NA
• Alarm Out: NA

PoE

• Interface: 8 RJ-45 10M/100M self-adaptive Ethernet Interface
• Max Power: Max 30W for single port, Max 75W in total
• Supported Standard    IEEE 802.3af/at

General

• Power Supply: 52V DC/1.8A Power Consumption: ≤ 10W (without HDD)
• Working Environment: -10°C~+ 55°C (+14°F~+131°F), Humidity ≤ 90% RH (non-condensing)
• Dimensions (W×D×H): 260mm × 222mm × 47mm (10.2" × 8.7" × 1.8")
• Weight (without HDD): ≤ 0.98Kg (2.16lb)

Certification

• Certification: CE, FCC, UL, RoHS, WEEE
• CE: EN 55032: 2015, EN 61000-3-3: 2013, EN IEC 61000-3-2: 2019, EN 55035: 2017
• FCC: Part15 Subpart B, ANSI C63.4
