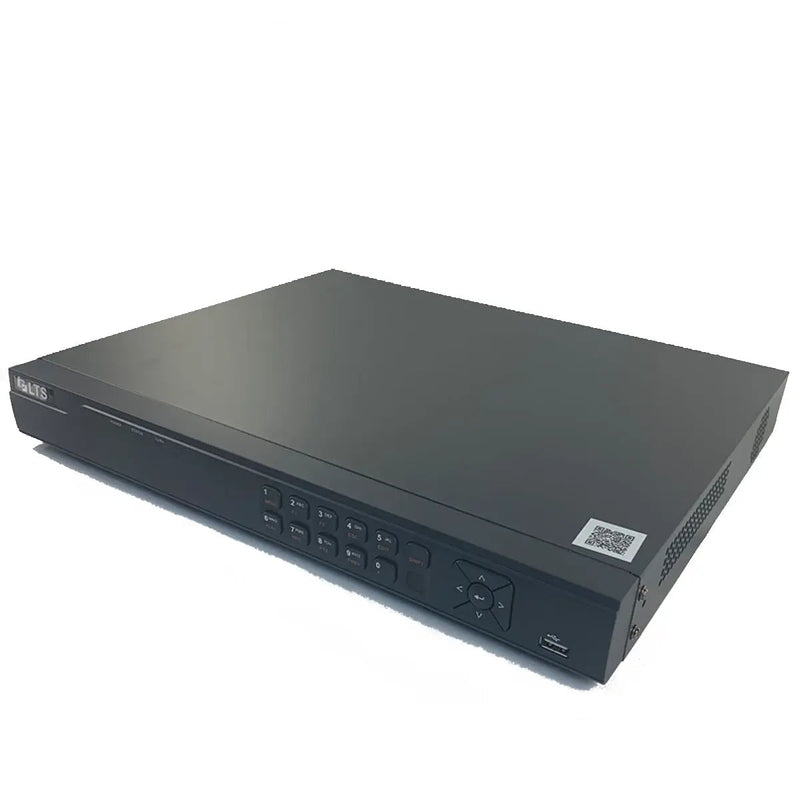

LTS LTD8316K-ET H.265 / H.265+ Platinum Professional 16 Channel HD-TVI DVR with built-in 4TB Hard Drive

Recorder Series: Platinum Series
Recorder Channel: 16-Channel
Recorder Case: 1U Case
Recorder Technology: TVI DVR
Video compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Encoding resolution: When 1080p lite mode is not enabled:
-4MP lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode is enabled:
-5MP lite/4 MP lite/3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
Main Stream Frame Rate: When 1080p Lite mode not enabled
For 4 MP stream access- 4MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps
For 1080p stream access- 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N)
For 720p stream access- 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled:
5 MP lite/4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps
(P)/30fps (N)
Sub-stream Frame Rate: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate: 32 Kbps to 6 Mbps
Dual stream: Support
Stream type: Video, Video & Audio
Audio compression: G.711u
Audio bit rate: 64 Kbps
IP video input: 8-ch (up to 24-ch)
Up to 6 MP resolution
Support H.265+/H.265/H.264+/H.264 IP cameras
Analog video input: 16-ch
BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input: 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720p25
*The 3 MP signal input is only available for channel 1/2 of LTD8308K-ET, and for channel 1/2/3/4 of LTD8316K-ET.
AHD input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input: 4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS input: PAL/NTSC
CVBS output: 1-ch, BNC (1.0 Vp-p, 75 Ω); PAL Resolution: 704 × 576; NTSC Resolution: 704 × 480
VGA output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
HDMI output: 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 ×1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 ×768/60Hz
Audio input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
Audio output: 1-ch, RCA (Linear, 1 KΩ)
Two-way audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
Synchronous playback: 16-ch
Remote connection: 128
Network protocol: TCP/IP, PPPoE, DHCP, LTS-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
Network interface: 1, RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary interface
SATA: 2 SATA interfaces
Capacity: Up to 10 TB capacity for each disk
Serial interface: RS-485 (half-duplex)
Front panel USB interface: 1 × USB 2.0
Rear panel USB interface: 1 × USB 3.0
Power supply: 12 VDC
Consumption (without HDD): ≤ 25 W
Working temperature: -10 °C to +55 °C (+14 °F to +131 °F)
Working humidity: 10% to 90%
Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
Weight (without HDD): ≤ 2 kg (4.4 lb)
