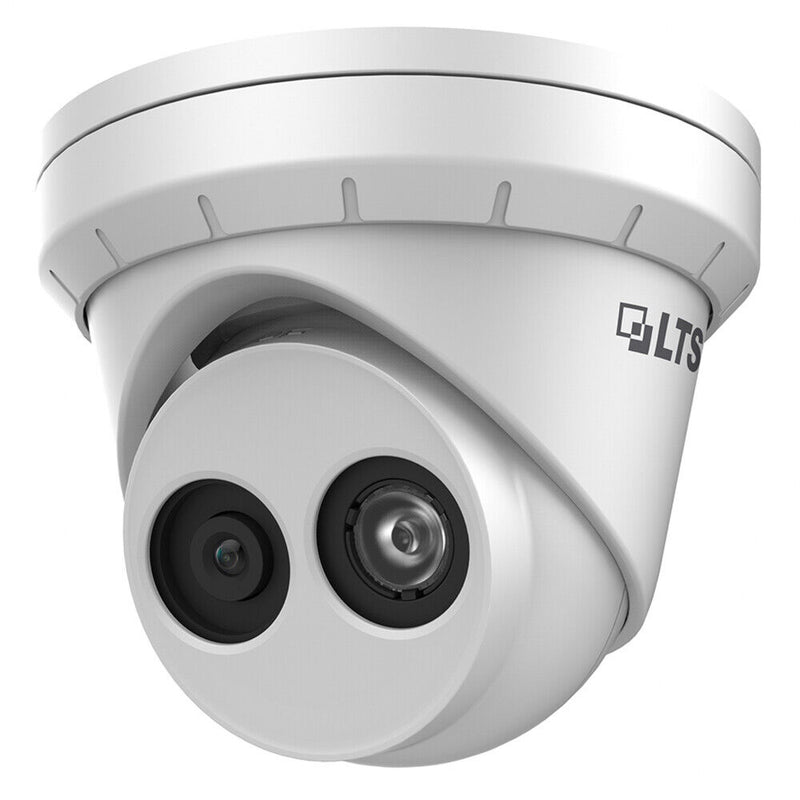

LTS CMIP3342W-28MD 4 MP IP67 WDR H.265 Smart Fixed Turret Network Camera

LTS CMIP3342W-28MD 4 MP IP67 WDR H.265 Smart Fixed Turret Network Camera
Availability:
Out of stock
Sold out
$136.50 - $136.50
$136.50
$136.50 - $136.50
$136.50

LTS CMIP3342W-28MD 4 MP IP67 WDR H.265 Smart Fixed Turret Network Camera

Empowered by deep learning algorithms, our technology brings human and vehicle target classification alarms to front- and back-end devices. The system focuses on human and vehicle targets, vastly improving alarm efficiency and effectiveness.

  • High-quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR
  • technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning

User Manual
 Spec Sheet



Features:

  • High-quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR
  • technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning

Specification:

Camera

  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with IR on
  • Shutter Speed: 1/3 s to 1/100,000 s
  • Slow Shutter: Yes
  • P/N: P/N
  • Wide Dynamic Range: 120 dB
  • Day & Night: ICR Cut
  • Angle Adjustment Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

  • Lens Type & FOV: 2.8 mm, horizontal FOV 103°, vertical FOV 55°, diagonal FOV 122° & 4 mm, horizontal FOV 84°, vertical FOV 45°, diagonal FOV 100°
  • Aperture: F1.6
  • Lens Mount: M12

DORI

  • DORI: 2.8 mm: D: 67 m, O: 26 m, R: 13 m, I: 6 m / 4 mm: D: 80 m, O: 31 m, R: 16 m, I: 8 m

Illuminator

  • IR Range: Up to 98ft(30 m)
  • Wavelength: 850 nm

Video

  • Max. Resolution: 2688 × 1520
  • Main Stream: 50Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) / 60Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub Stream: 50Hz: 25 fps (640 × 480, 640 × 360) / 60Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream: 50Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360) / 60Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)


  • Day/Night Switch: Day, Night, Auto, Schedule
  • Image Enhancement BLC, HLC, 3D DNR
  • Image Parameters Switch Yes
  • Image Settings: Rotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser.



Interface

  • On-board Storage: Built-in micro SD, up to 256 GB
  • Hardware Reset: Yes
  • Communication Interface: 1 RJ45 10M/100M self-adaptive Ethernet port

Event

  • Basic Event: Motion detection (human and vehicle targets classification), video tampering alarm,
  • exception
  • Face Detection: Yes

Deep Learning Function

  • Perimeter Protection: Line crossing detection, intrusion detection / Supports human and vehicle targets classification

General

  • Linkage Method: Upload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger
  • capture, Email, 33 languages
  • General Function: Anti-flicker, heartbeat, password reset via e-mail, pixel counter
  • Software Reset: Yes
  • Storage Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions: -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Power Supply: 12 VDC ± 25%, reverse polarity protection PoE: 802.3af, Class 3
  • Power Consumption and Current: 12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.19 A to 0.12 A, max. 7 W
