LTS CMIP1042-28 2.8mm 4MP HD Platinum Matrix Turret Network IP CCTV Camera

LTS CMIP1042-28 2.8mm 4MP HD Platinum Matrix Turret Network IP CCTV Camera LTS

Sorry, this product has been discontinued.

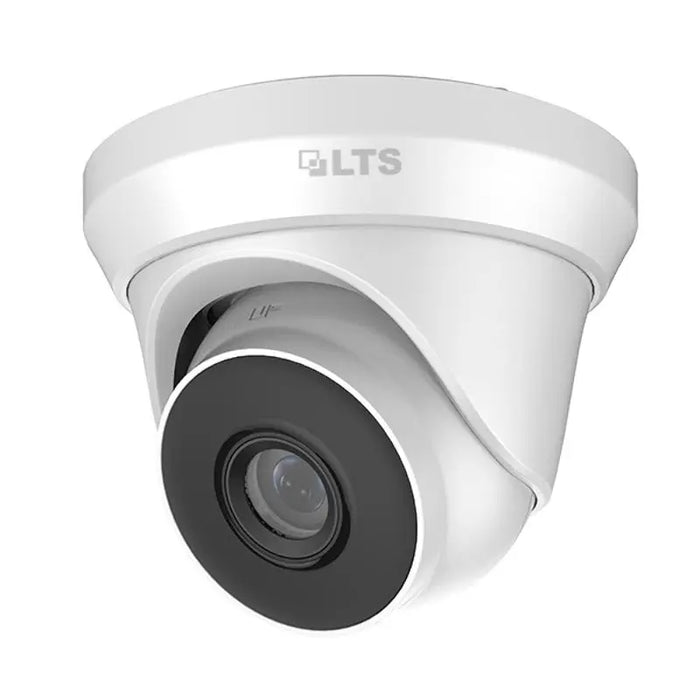

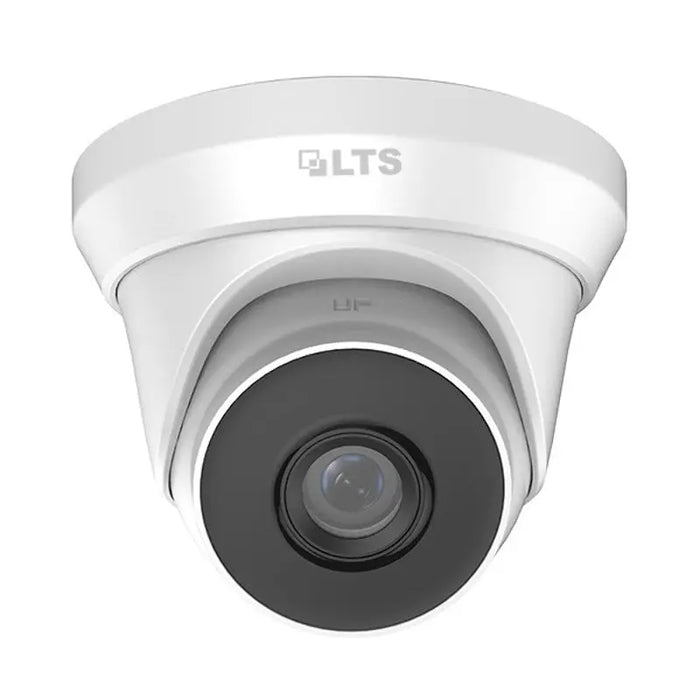

LTS CMIP1042-28 Platinum Matrix Turret Network IP Camera 4MP High Definition - 2.8mm

‚ÄĘ 4MP High Definition
‚ÄĘ Up to 2560x1440@20fps
‚ÄĘ 2.8mm Fixed Lens
‚ÄĘ IR Range up to 100 feet
‚ÄĘ H.265, H.265+, H.264, H.264+ Ready
‚ÄĘ DWDR
‚ÄĘ IP67
‚ÄĘ DC 12V, PoE
‚ÄĘ Metal Housing

SPECIFICATIONS

CAMERA
Image Sensor: 1/3" Progressive Scan CMOS
Min. Illumination: 0.01Lux @ (F1.2, AGC ON), 0 .028Lux @ (F2.0, AGC ON)
Shutter Speed: 1/3 s to 1/10,000 s
Lens: 2.8mm, horizontal FOV 100¬į, vertical FOV 55¬į, diagonal FOV 117¬į
Lens Mount: M12
Day & Night: IR cut filter
DNR: 3D DNR
Wide Dynamic Range: DWDR
Angle Adjustment: Pan: 0¬į to 360¬į, tilt: 0¬įto 75¬į, rotation:0¬į to 360¬į

COMPRESSION STANDARD
Video Compression: Main stream: H .265/H.264, Sub stream: H.265/H .264/MJPEG
H.264 / H.264 Zip+Type: Baseline Profile / Main Profile / High Profile / Main Stream Support
H.265 / H.265+ Type: Main Profile / Main Stream Support
Video Bit Rate: 32 Kbps ~ 8 Mbps

Max. Resolution: 2560 √ó 1440
Main Stream: 50Hz: 20fps (2560 √ó 1440, 1920 √ó 1080, 1280 √ó 720) / 60Hz: 20fps (2560 √ó 1440, 1920 √ó 1080, 1280 √ó 720)
Sub Stream: 50Hz: 20fps (704 √ó 576, 352 √ó 288, 640 √ó 480, 320 √ó 240) / 60Hz: 20fps (704 √ó 480, 352 √ó 240, 640 √ó 480, 320 √ó 240)
Image Setting: Saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
ROI: 1 fixed region for main stream and sub-stream
Day/Night Switch: Auto/Scheduled

NETWORK
Network Storage: NAS (NFS,SMB/CIFS)
Alarm Trigger: Motion detection, video tampering alarm, illegal login
Protocols: TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
General: Anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Standard: ONVIF (PROFILE S, PROFILE G), PSIA, CGI, ISAPI

INTERFACE
Communication Interface: 1 RJ45 10M/100M Ethernet port
Reset: Yes

GENERAL
Working Temperature/Humidity: -22 ¬įF ~ 122 ¬įF (-30 ¬įC ~ 60 ¬įC) / Humidity 95% or less (non-condensing)
Power Supply: DC12V ¬Ī 25%, PoE (802.3af)
Power Consumption: Max. 8.5W/wwW (PoE)
IR Range: 66ft to 100ft
Weather Proof Ratings: IP67
Dimensions: ő¶ 5.14‚Ä≥ √ó 4.03‚Ä≥ (ő¶ 130.5 √ó 102.4 mm)
Weight: 1.07lb. (485 g)
