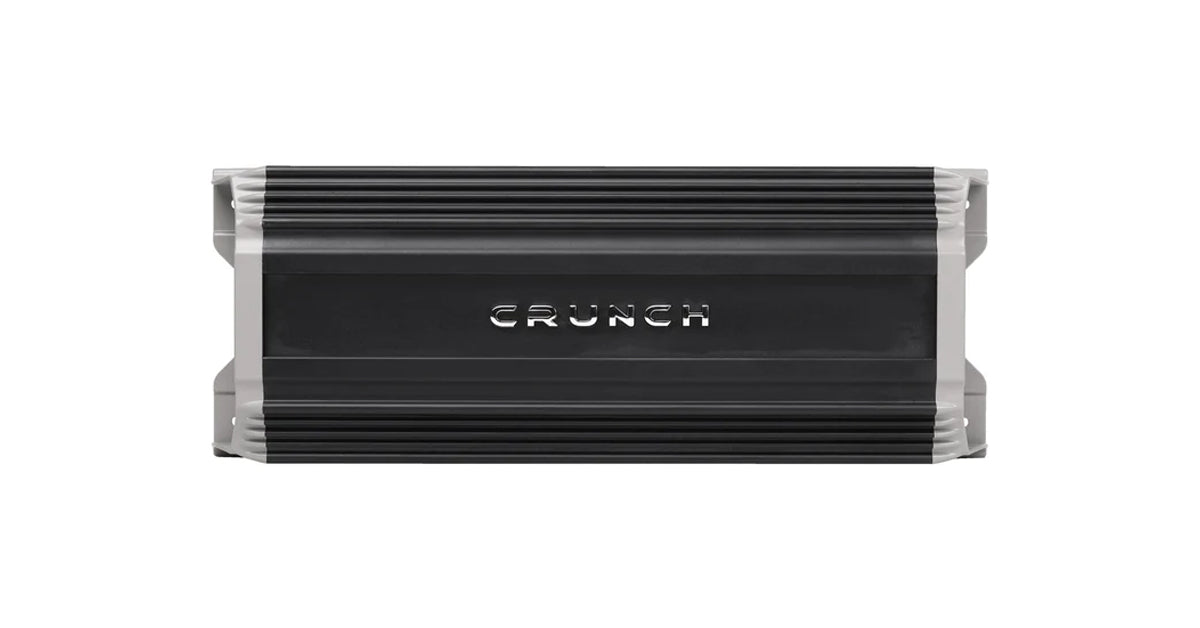

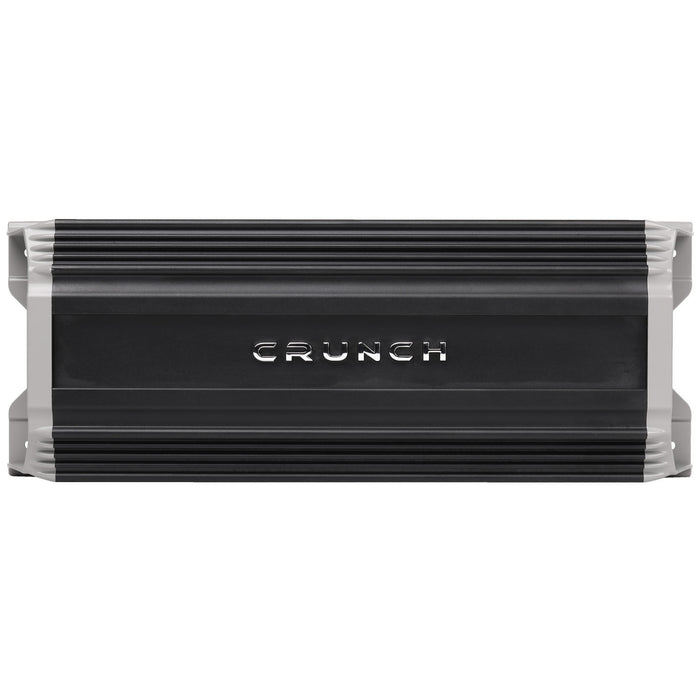

Crunch PZ2-2030.5D Powerzone 5-Channel 2000 Watt Class D Car Audio Amp

Features:

RCA Inputs
Low voltage RCA inputs produce the highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.

Operation Mode
5 channel operation mode.

Crossover Type
Variable electronic crossovers allow for complete control of the sound.

Electronic Equalizer
Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers. Check specifications for specific frequencies for this amplifier.

Class / Topology
Very efficient D-Class to drive additional power while remaining a small footprint.

Output Device Technology
Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.

Heat Sink
QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions.

Power Supply
Rugged MOSFET Pulse Width Modulation power supply. Allows amplifier to product efficient power without taxing the vehicle electrical system.

Output Connections
Nickel-plated brass connectionwith hex set screw terminals allow for secure connection and resist erosion.

Connection Type
Secure connection for all power, ground and speaker connections.

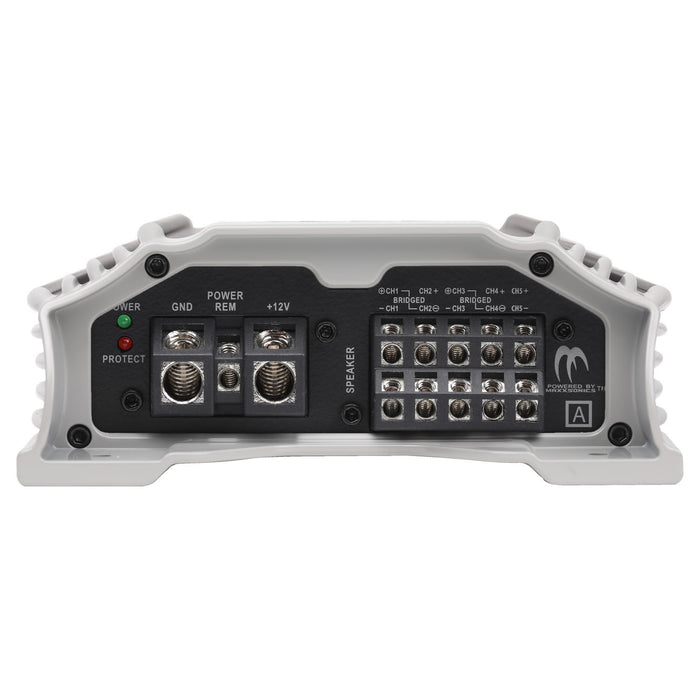

LED System Protection Circuitry Diagnostics
Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel.

Specifications:

• Weight: 8 lbs
• Dimensions : 19.25 × 7 × 3.25 in
• Type: Amplifier
• Brand: Crunch
• Series: POWERZONE 2
• Category: Mobile
• Condition: New
• Color: Black/Gray
• Warranty: 1 Year
• Compatible Vehicles: Universal
• Amp Class: Class D
• Amp Total Channels: 5
• Amp Max Power (watts): 2000
• Amp Power @ 1 Ohm (ch x watts): 1 x 1000 Sub Only
• Amp Power @ 2 Ohms (ch x watts): 4 x 200 + 1 x 500
• Amp Power @ 4 Ohms (ch x watts): 4 x 100 + 1 x 250
• Amp Crossover: Variable Electronic 12dB Per Octave
• Amp Variable High Pass Crossover 12dB per Octave: 40Hz-400Hz
• Amp Variable Low Pass Crossover 12dB per Octave: 40Hz-300Hz
• Amp Tone Control / Parametric EQ: Built-in Bass Control
• Amp Bass Boost: 0-12dB
• Amp Subsonic Filter: 10-40Hz
• Amp Variable Voltage: 0.2-6V
• Amp Frequency Response: 10Hz-22kHz
• Amp Total Harmonic Distortion (THD): < 0.1%
• Amp Speaker Level Audio Inputs: Yes
• Pre-amp Audio Outputs: Full Range, RCA
• Amp Power Terminal 12v/GND: 4 AWG
• Amp Speaker Terminal Wire Gauge: 12 AWG
• Amp Fusing: External 100A
