Clarion EQS755 1/2-DIN 7-band Graphic Equalizer With 3.5mm Front AUX Input

Clarion EQS755 1/2-DIN 7-band Graphic Equalizer With 3.5mm Front AUX Input Others

Sorry, this product has been discontinued.

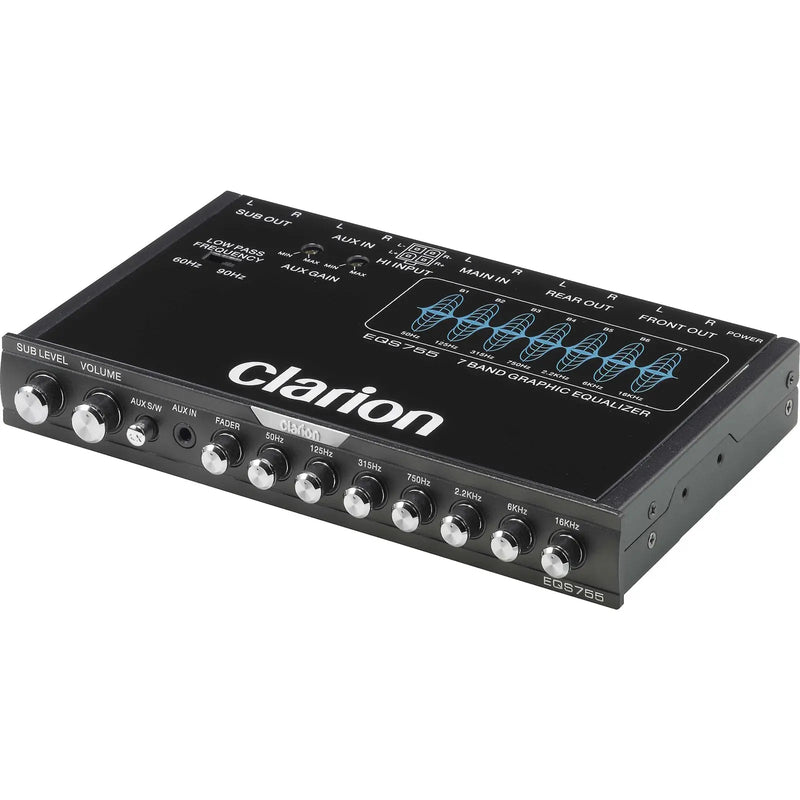

Clarion EQS755 1/2-DIN 7-band Graphic Equalizer

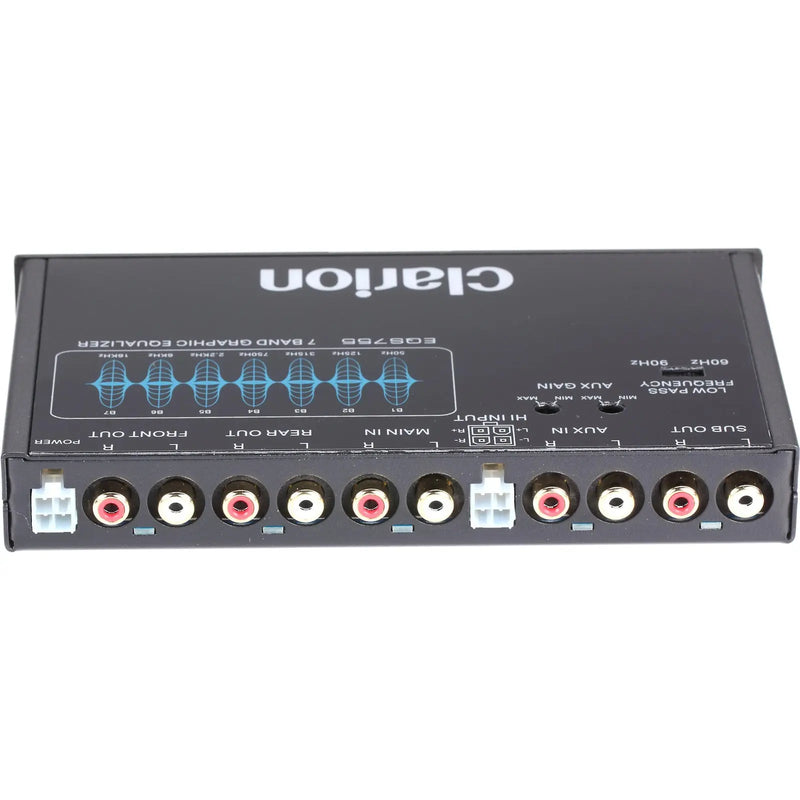

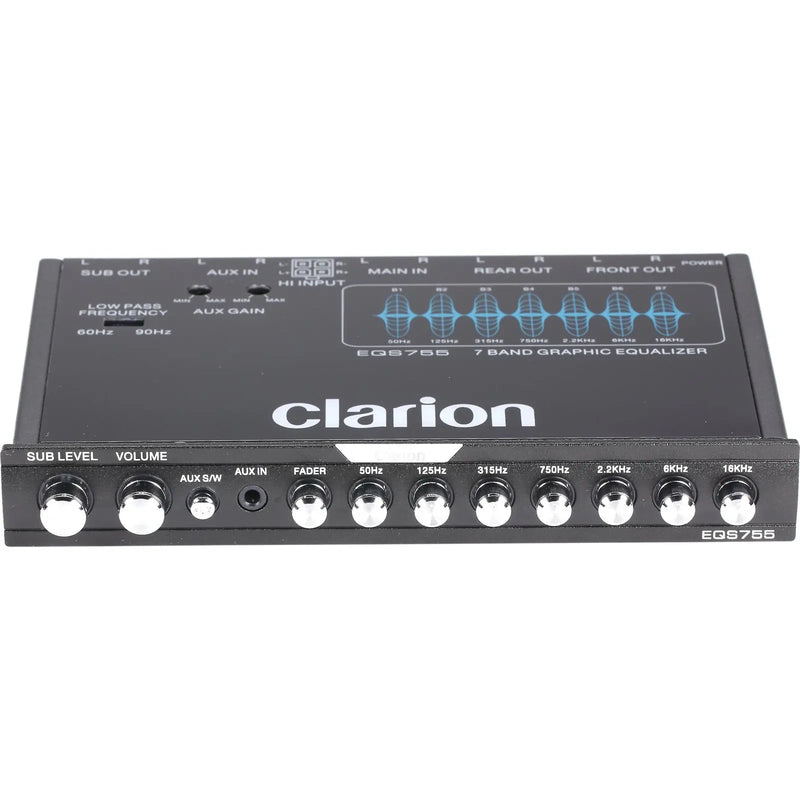

The EQS755 features RCA inputs and high-level speaker inputs, so you can connect it to just about any system. It also features two AUX inputs ‚ÄĒ RCA jacks in the back and a 1/8" AUX input on the front panel ‚ÄĒ which you can select with the AUX switch on the front panel. The RCA AUX inputs offer variable gain so you can adjust for audio sources of varying levels, while a selectable low-pass filter at 60 or 90 Hz tames the wilder extremes of bass. The 8-volt outputs ensure that your amplifiers will get a clean, powerful signal for maximum performance.

Features:

  • 7-Band Graphic Equalizer (50Hz, 125Hz, 315Hz, 750Hz, 2.2kHz, 6kHz, 16kHz)
  • 6-Channel / 8-Volt RCA Outputs (Front, Rear, and Subwoofer)
  • Blue Illumination
  • Independent Master Volume and Subwoofer Level Control with Fader Control
  • 3.5mm Front AUX Input
  • 2-Channel RCA AUX Input with Variable Gain Adjustment
  • Selectable 12dB Low-Pass Filter (60Hz or 90Hz)
  • Fader Control
  • Ground Loop Isolation Circuit
  • RCA and High-level Speaker Inputs
  • Dimensions : 7"(W) x 4-1/4"(L) x 1"(H)

Specifications:

  • Number of Bands: 7
  • EQ Center Frequencies: 50Hz, 125Hz, 315Hz, 750Hz, 2.2KHz, 6KKz, 16KHz
  • Input sensitivity: AUX Inputs 3.6v
  • Input sensitivity: Speaker Inputs 10.8v
  • Signal-to-noise ratio: 83dB
  • Max Output Level: 8V
  • Cut/Boost: +/- 12dB
  • Frequency response: 8Hz-40,000Hz
  • Channel separation: 73dB/1KHz

  • 1/2-DIN Graphic EQ/Crossover

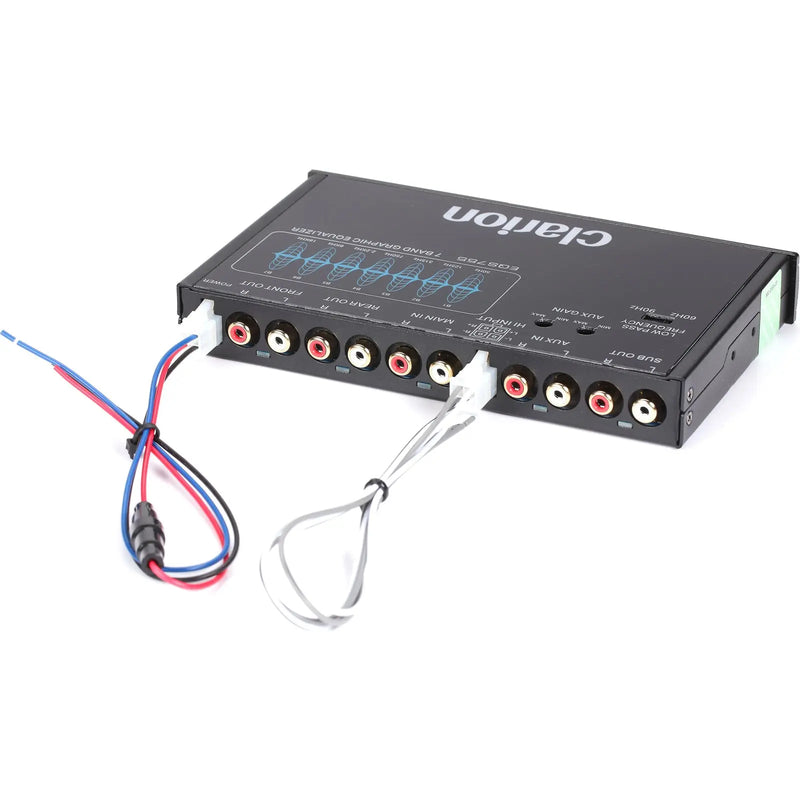

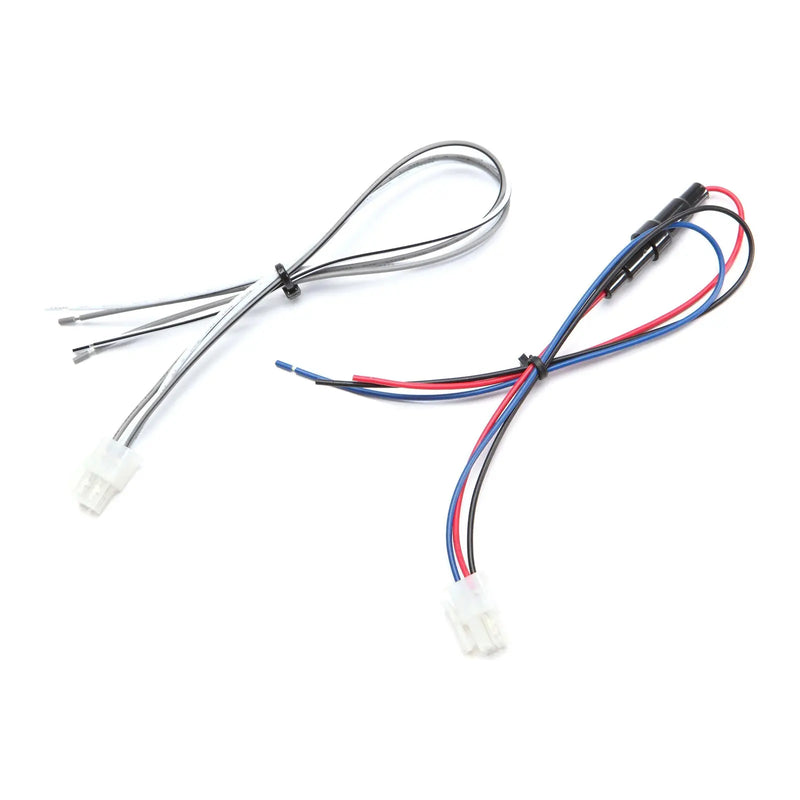

  • Power/ground harness
  • Speaker harness

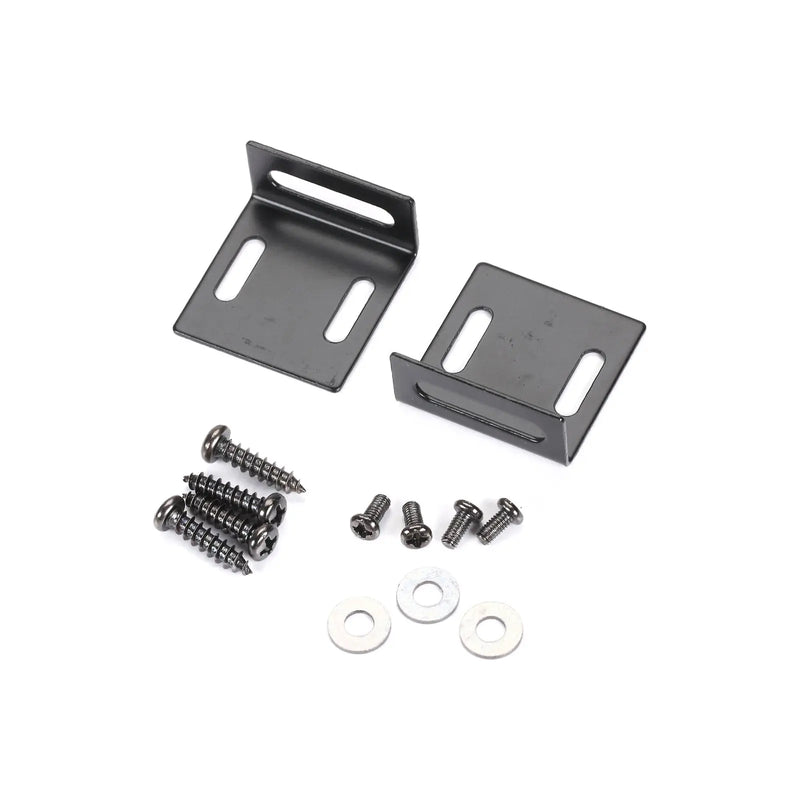

  • 2 Brackets
  • 4 Machine screws
  • 4 Self-tapping screws
  • 4 Flat washers
  • Owner's Manua/Installation Manual
