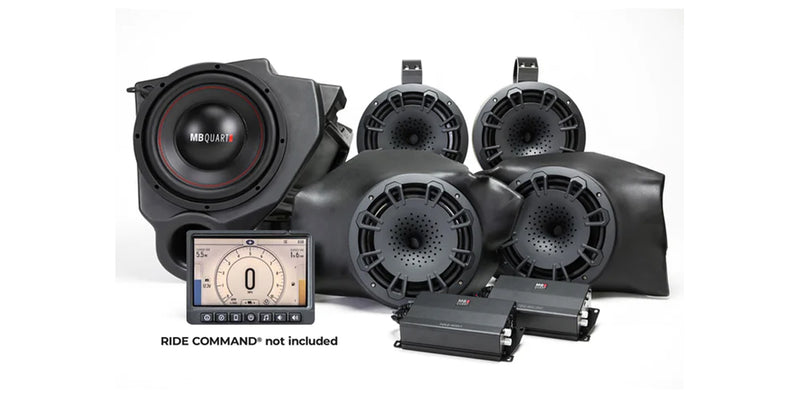

MB Quart MBQR-STG5-RC-1 4 Speakers Stage 5 Polaris RZR Tuned System 800W

Features:

Compatible Vehicle Fitment
Polaris RZR 2014-Current with RIDE COMMAND

Compatible Product Models
Polaris RIDE COMMAND

Marine Grade Protection / IPX Rating
MB Quart has engineered a select group of UTV-tuned audio systems that are perfectly designed for the Polaris RZR. It is essential that every component installed in a RZR be torture tested to be as reliable as it can be in such a harsh environment. This system is made up of multiple components that have different IPX ratings. The speakers and subwoofer are IPX67 rated. The amplifiers are IPX5 rated.

Source Unit Features
Integration with RIDE COMMAND, a high-tech source unit with an off-road display that acts as the hub and integrates your phone, GPS, audio, and communication systems. The actual RIDE COMMAND source unit is NOT INCLUDED.

Speaker Features
The front speakers are meticulously engineered to fit in the RZR kick panels. The entire system utilizes the MB Quart compression horn technology. (See inside here). This design assures that the system will be louder and better sounding than anything else on the trails. The rear (Pod) speakers are the exact speaker as the front, but mounted in a pair of versatile enclosure with the included swivel mounts for perfect alignment to the listener (regardless of the roll cage angle).

Amplifier Features
The RZR system is powered by the NA2 series of amplifiers. The stereo amplifier is operating in 2 ohm mode for maximum volume for all 4 speakers (front and rear pods).

Subwoofer Features
400 Watt Specific 10 inch Subwoofer System includes 10 inch, Dual 4 ohm Subwoofer, RZR ported glovebox Subwoofer Enclosure, powered by the 400 Watt High Effeciency Class D amplifier.

Mount / Harness
Plug and Play Harness. Waterproof Connectors with premeasured wires. No guesswork and no installation mistakes.

Time and Tools
Standard hand tools are required. See the manual for time on each of the different components.

Specifications:

• Weight: 67.1 lbs
• Type: UTV Kit
• Brand: MB Quart
• Series: Polaris RZR Tuned
• Category: Powersports
• Condition: New
• Warranty: 1 Year
• IPX Rating: IPX5, IPX67

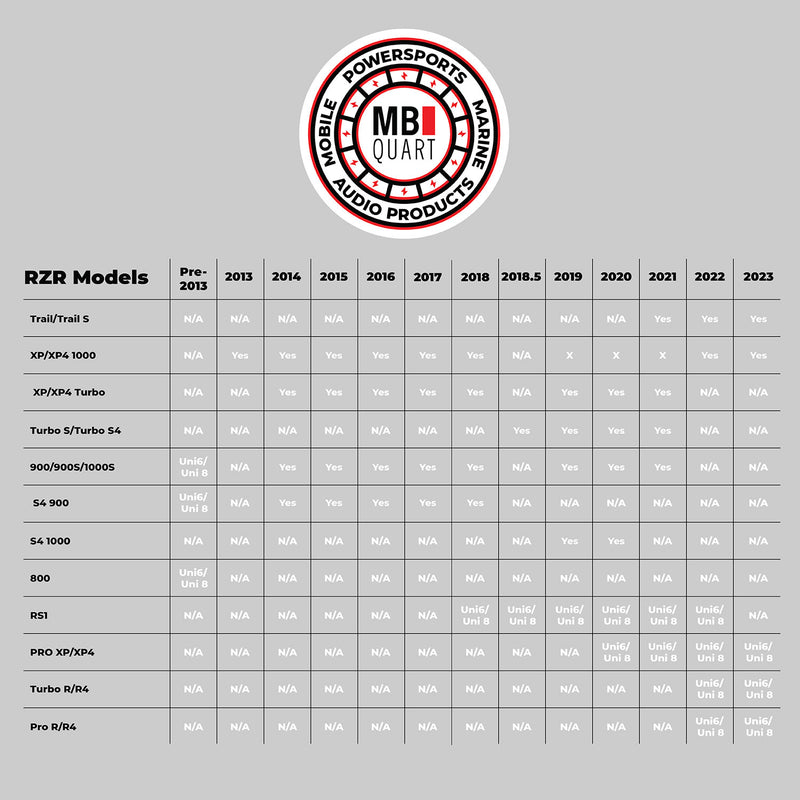

• Compatible Vehicles: Polaris RZR 2014-Current with RIDE COMMAND
• UTV Kit Total System Power (watts):  800
• Additional Details: See Kit Inclusions and Features & Benefits for product components and details.
• Proposition 65 Notice: WARNING: This product can expose you to chemicals including LEAD, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Source Unit
SOURCE UNIT INTEGRATION: Adapters to integrate with Polaris RIDE COMMAND (The actual RIDE COMMAND source unit is NOT INCLUDED).

Front Speakers
8 inch 2 Way NH1-120B Compression Horn Speakers, lower right & left speaker pods for 8 inch speakers, easy installation template.

Front Speakers Mounting
Kick panel mounted HDPE composite enclosures are premounted into pods for simple installation.

Rear Speakers
High SPL 8 inch compression horns (NHT1-120BPR) speaker pods are included for 30% more volume.

Rear Speakers Mounting
Roll Cage Mount Speakers with Swivel Mount Brackets for rear pods.

Subwoofer
10 inch, Dual 4 ohm Subwoofer, RZR Specific Under-Dash Ported Subwoofer Enclosure.

Subwoofer Mounting
Replaces the glovebox and mounting bolts and plates are included.

Full Range Amplifier
High efficiency NA2-400.2 400 Watt Two Channel Class D, Compact Powersports Amplifier.

Full Range Amplifier Mounting
Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer.

Subwoofer Amplifier
High-efficiency NA2-400.1 400 Watt Class D, Compact Powersports mono Subwoofer Amplifier.

Subwoofer Amplifier Mounting
RZR Amplifier Mounting Brackets are included.

Harnessing
Full system harness capable of accommodating source unit, 2 amplifiers, which power 4 speakers, and the subwoofer.

Accessories
MBQR-ACC-1: RZR Radio and Dual Amplifier Harness is included with the system. RIDE COMMAND adapters are included.
