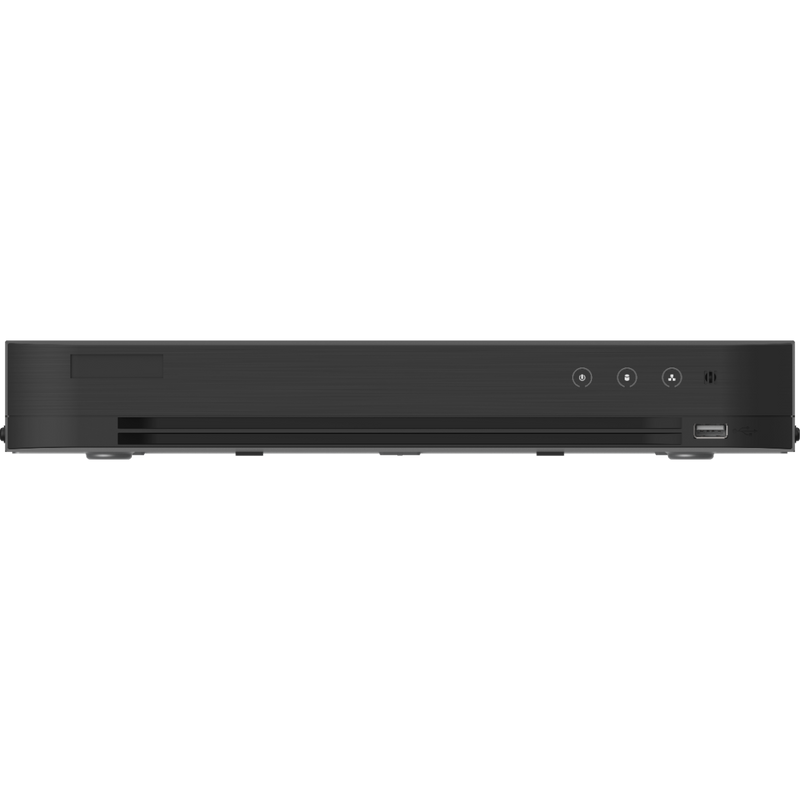

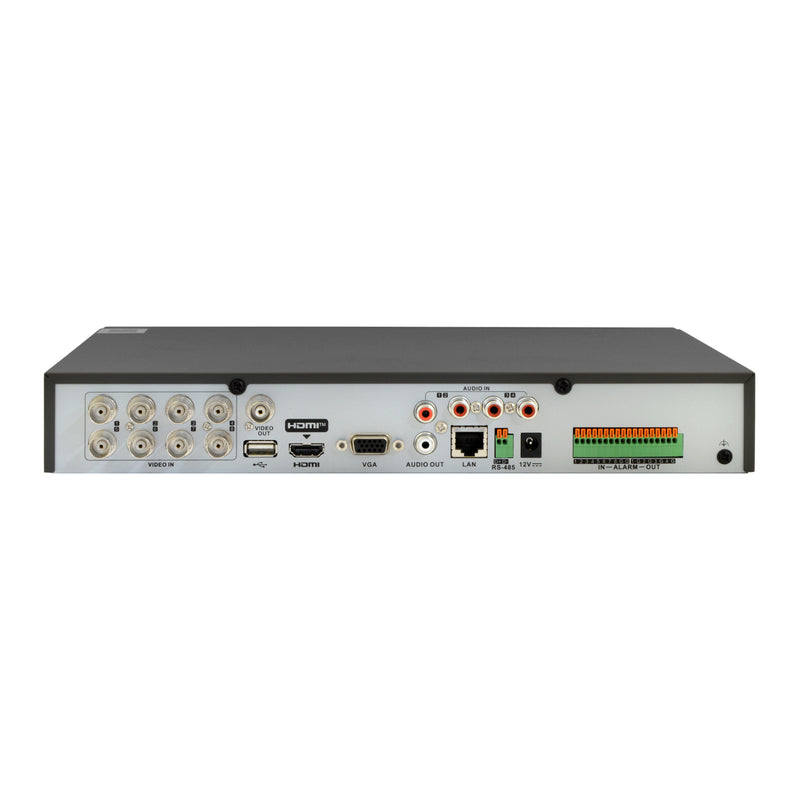

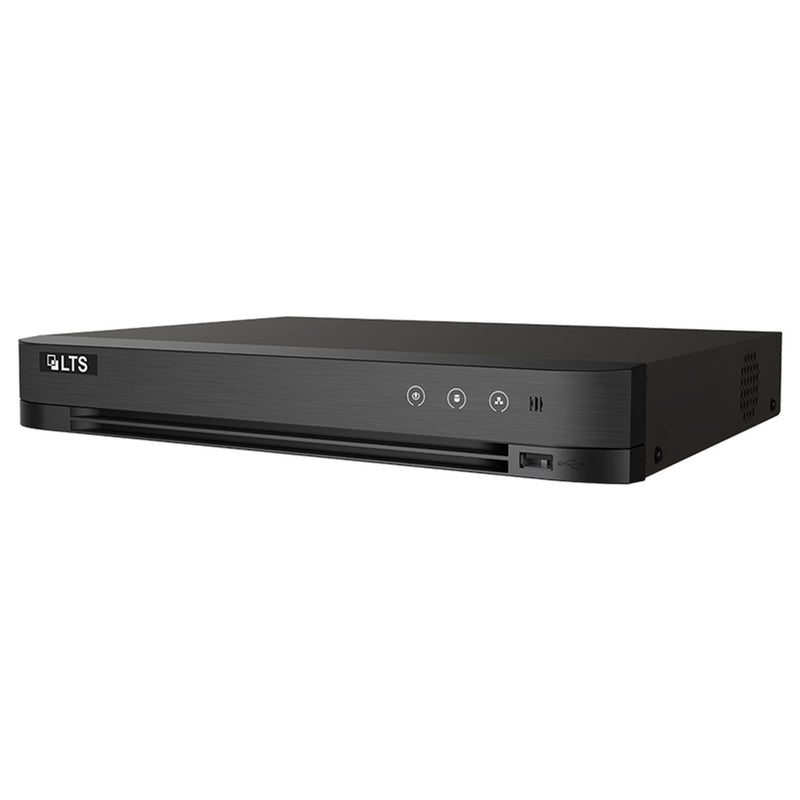

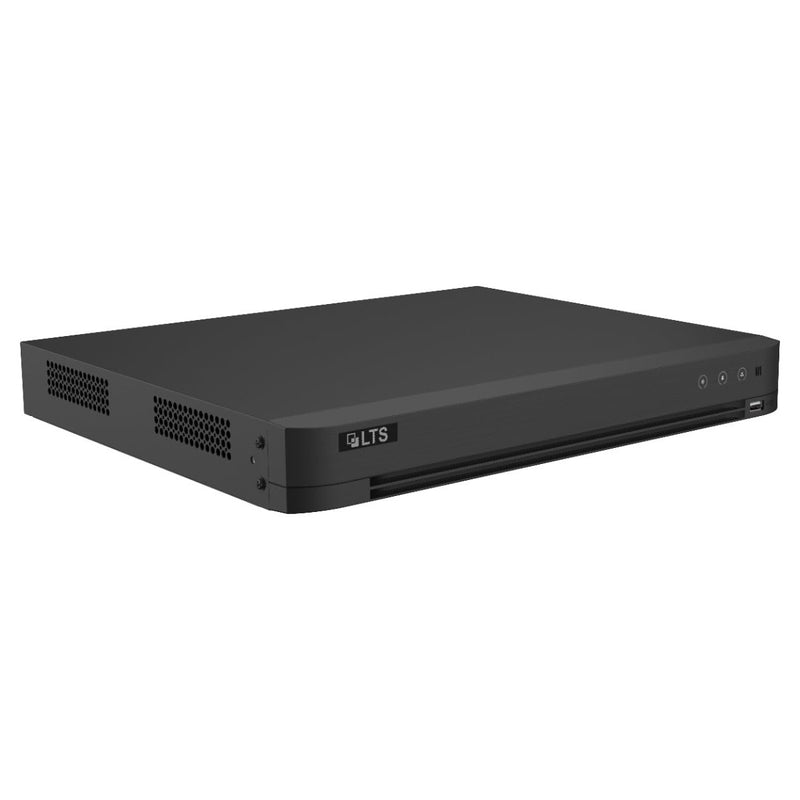

LTS LTD8308M-ETC 8-Channel H.265+ HD-TVI DVR with 2TB Pre-Installed Storage

Features:

• 8 Channel Video Recorder
• No HDD Included
• Compact Case H.265/H.265+
• Support TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1)
• 1st and 2nd channel support up to 3MP HD-TVI input
• Support Live View, Storage, Playback up to 8 HD-TVI/ Analog Cameras + 1 IP Camera up to 4MP
• Up to 1080P (1920*1080) HDMI Video Output
• CVBS Output
• 1x SATA slot, up to 6TB each HDD
• 2x USB 2.0

Specifications:

Video / Audio Input

• Video compression: H.264
• HD-TVI video input: 8-channel
• Video input interface: BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
• IP input: 2ch(1080p@30fps)
• Audio compression:  G.711u
• Audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)
• Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)

Video / Audio Output

• HDMI/VGA output    1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
• Encoding resolution: Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
• Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
• Frame rate: Main stream: 1/16 fps ~ Real time frame rate
• Sub-stream: 1/16 fps ~ Real time frame rate
• Video bit rate: 32 Kbps-4 Mbps
• Audio output: 1-ch, RCA (Linear, 1 kΩ)
• Audio bit rate: 64 Kbps
• Dual-stream: Support
• Stream type: Video, Video & Audio
• Synchronous playback: 8-ch
• Playback resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network

• Remote connection: 128
• Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk

• SATA: 1 SATA interface
• Capacity: Up to 4TB capacity for each disk

External Interface

• Network interface: 1:10M / 100M self-adaptive Ethernet interface

General

• Power supply: 12V DC
• Power Consumption: ≤ 20 W
• Working temperature: -10 °C~+55°C(14°F ~ 131 °F)
• Working humidity: 10% ~ 90%
• Chassis: 1U chassis
• Dimension: 315 × 230 × 45 mm (12.4" x 9.1" x 1.8")
