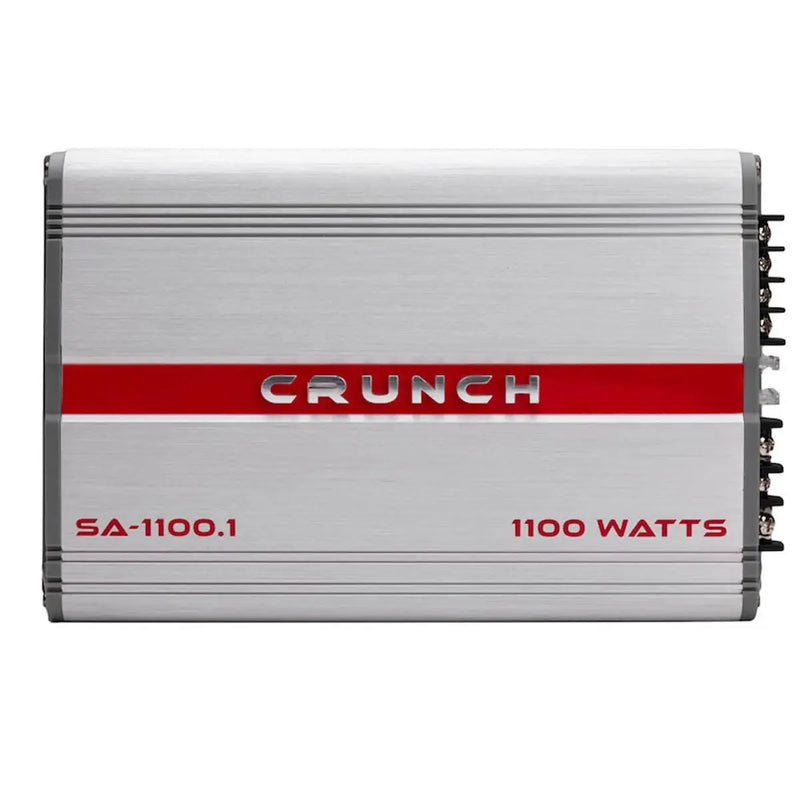

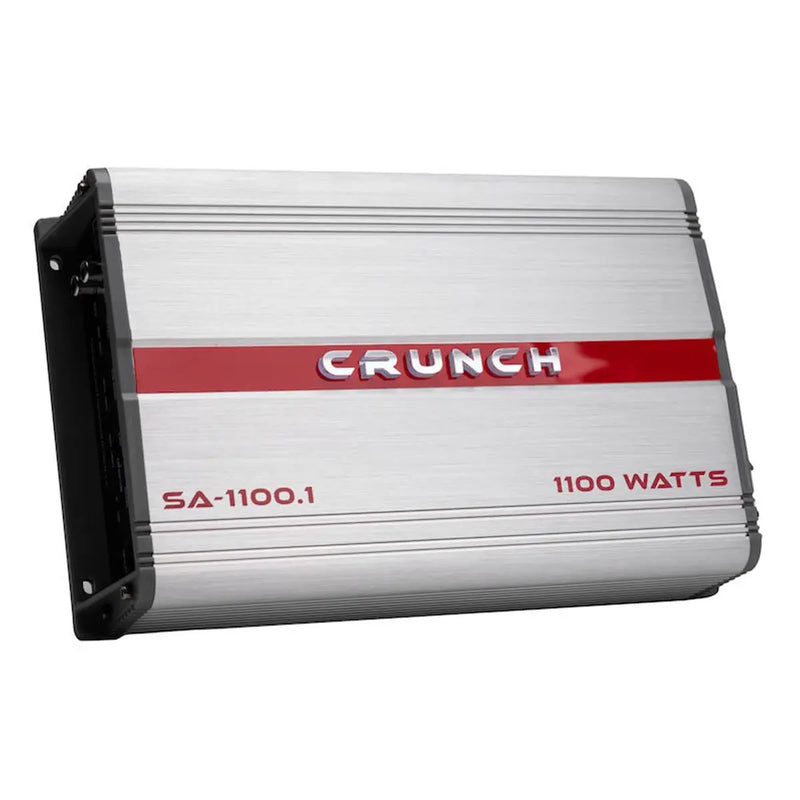

Crunch SA-1100.1 Smash Amplifier Mono 1100W 1-Channel Class-A/B Subwoofer Amp

Features:

• LOW NOISE PREAMPLIFIER CIRCUIT
  The maximum low voltage signal from the source unit comes into the amplifier through a low voltage circuit which delivers minimal distortion through the amplification process.

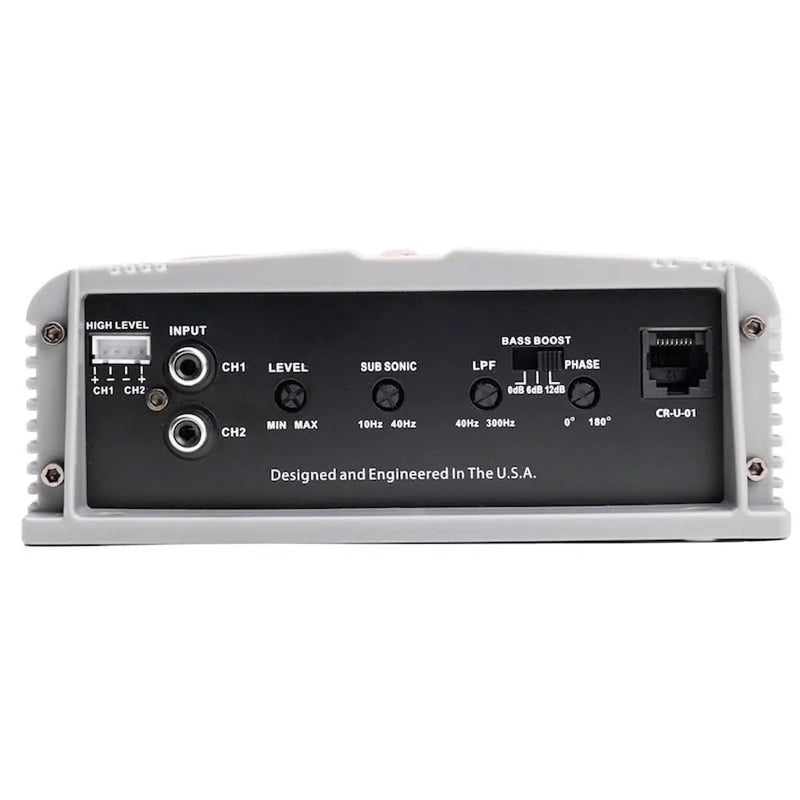

• RCA INPUTS
  Highest sound quality connection with quality RCA materials helps prevent interference and minimize distortion in the signal path.
• HIGH-LEVEL INPUTS
  Easily tie into OEM audio systems that do not offer RCA output to maximize after market amplifier power.
• OPERATION MODE
  Mono Only
• CROSSOVER TYPE
  Variable Electronic 12dB Per Octave
• ELECTRONIC EQUALIZER
  Fully Adjustable 12dB Crossovers
• CLASS/TOPOLOGY
  Class A/B: High sound quality circuit that allows Smash to develop high levels of power with minimal distortion.
• OUTPUT DEVICE TECHNOLOGY
  Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion.
• HEAT SINK
  QTD Technology Aluminum: Quick Thermal Dispersion Technology assures additional mass in the aluminum heat sink keeps the amplifier running cool with nearly undetectable distortions during normal music listening.
• POWER SUPPLY
  High energy Pulse Width Modulated Power Supply delivers power with minimal impact on the electrical system.

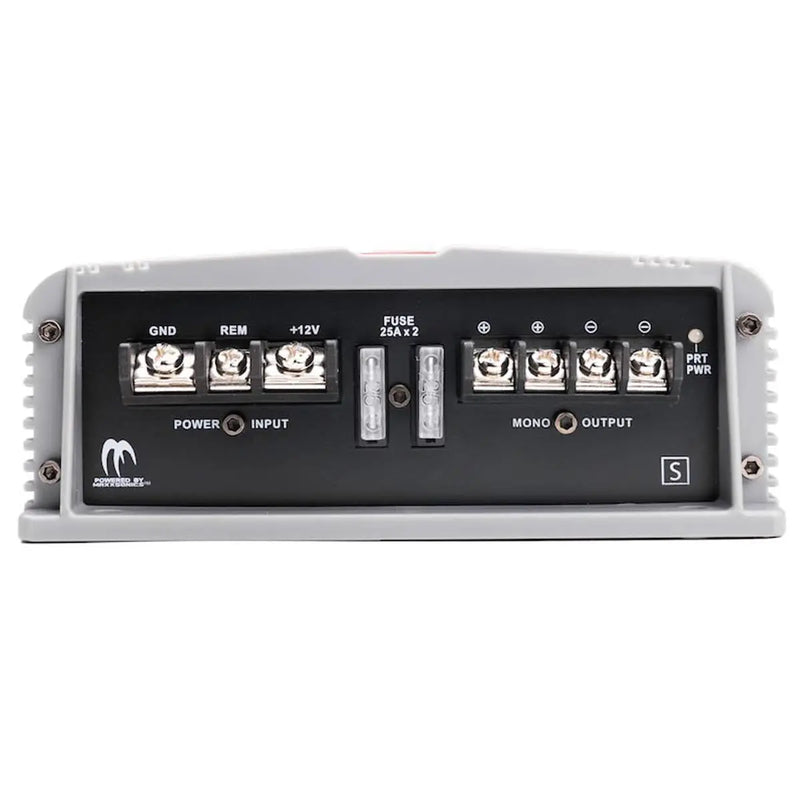

• OUTPUT CONNECTIONS
  Nickel Plated Brass Connection with terminals allows for secure connection while resisting corrosion.
• CONNECTION TYPE
  Screw Down Connectors: Easy access for hand tool allowing a quick and secure connection.
• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
  Monitor overload and speaker short protection with lighted indicators on the amplifier end panel.
• BASS REMOTE INCLUDED
  Wired Bass Remote allows adjustments to bass frequencies to be made from the control mounted anywhere in the vehicle

Specification:

• CLASS
  Class A/B
• TOTAL CHANNELS
  1
• POWER @ 1 OHM (CH X WATTS)
  N/A
• POWER @ 2 OHMS (CH X WATTS)
  1 x 195
• POWER @ 4 OHMS (CH X WATTS)
  1 x 120
• MONO BRIDGED @ 4 OHMS (CH X WATTS)
  N/A
• CROSSOVER
  Variable Electronic 12dB Per Octave
• TONE CONTROL/PARAMETRIC EQ
  Built-in bass control
• BASS BOOST
  Switchable: 0 / +6 / +12dB
• SUBSONIC FILTER
  10Hz-40Hz
• PHASE SHIFT
  0-180 Degrees
• VARIABLE VOLTAGE
  .2 to 9V
• FREQUENCY RESPONSE
  10Hz-500Hz
• SPEAKER LEVEL AUDIO INPUTS
  Yes
• POWER TERMINAL 12V/GND
  4 AWG
• SPEAKER TERMINAL WIRE GAUGE
  12 AWG
• FUSING
  2 x 25A
