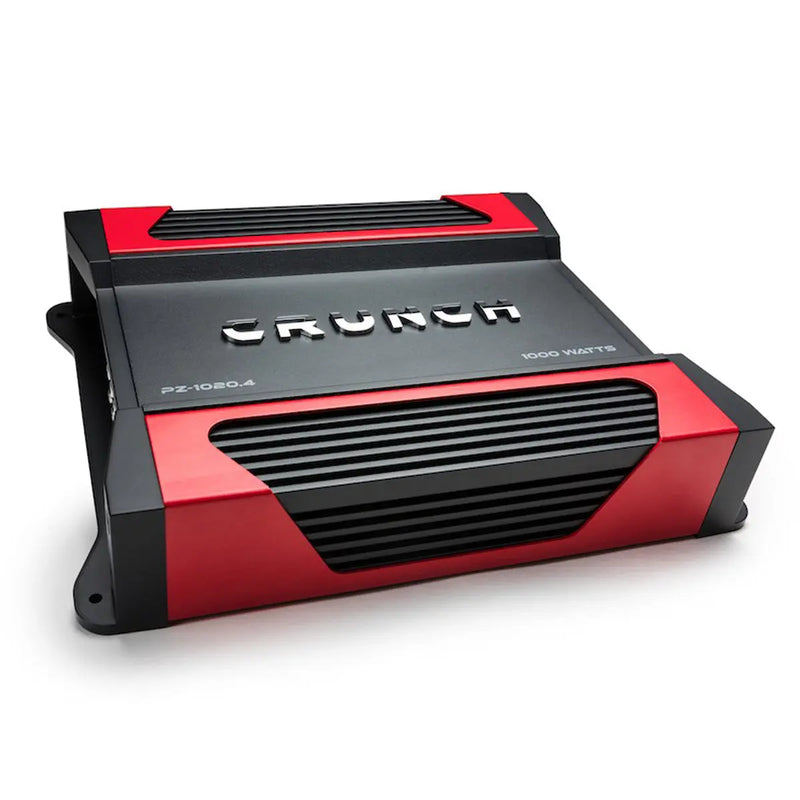

Crunch PZ-1020.4 Powerzone 1000 Watts Class AB 4-Channel Car Audio Amplifier

Features:

• HI LEVEL INPUTS
  High-level inputs easily tie into OEM audio systems that do not offer RCA output. Molex connector is included
• OPERATION MODE
  4 channel operation mode allows either stereo or mono bridged operation
• CROSSOVER TYPE
  Variable electronic crossovers allow for complete control of the sound
• ELECTRONIC EQUALIZER
  Control of amplifier output with on-board electronic crossover to tailor specific frequencies to speakers and subwoofers.
• CLASS / TOPOLOGY
  Class A/B high sound quality circuit that allows the amplifier to develop high levels of power with minimal distortion
• OUTPUT DEVICE TECHNOLOGY
  Exclusive Crunch SPEED-FET MOSFET components maximize power efficiency while improving sound quality and minimizing distortion
• HEAT SINK
  QTD (Quick Thermal Dispersion) technology assures the amplifier makes huge power while running very cool with nearly undetectable musical distortions
• POWER SUPPLY
  Rugged MOSFET Pulse Width Modulation power supply
  Allows amplifier to product efficient power without taxing the vehicle electrical system

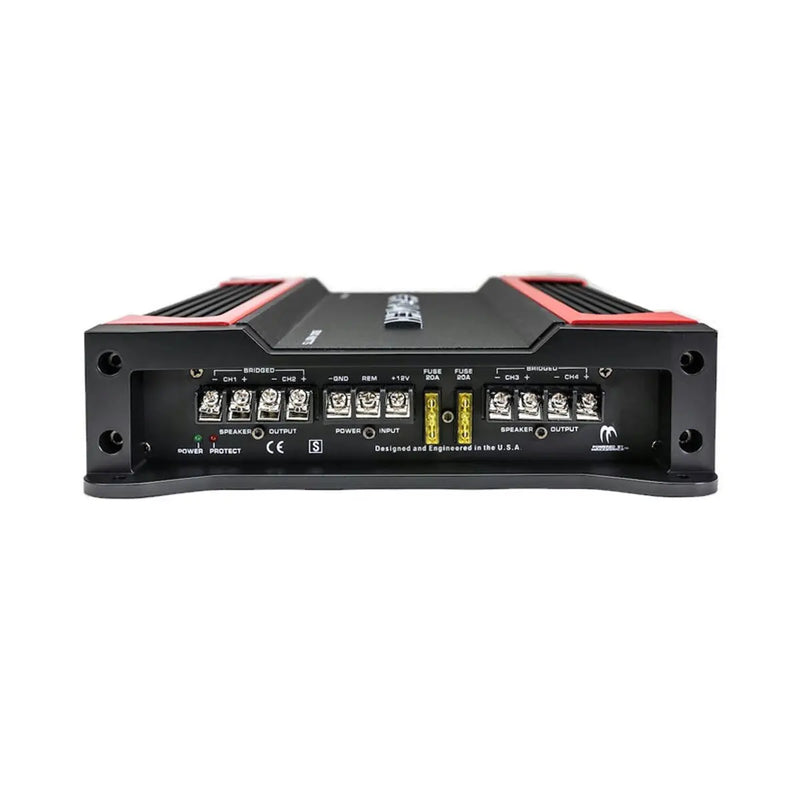

• OUTPUT CONNECTIONS
  Nickel-plated brass connection with hex set screw terminals to allow for a secure connection and resist erosion
• CONNECTION TYPE
  Secure connection for all power, ground and speaker connections.
• FULL-RANGE RCA OUTPUTS FOR SIGNAL PASS THROUGH
  Daisy chain multiple amplifiers to eliminate additional signal cables from the source unit
• LED SYSTEM PROTECTION CIRCUITRY DIAGNOSTICS
  Monitor overload and speaker short protection with illuminated indicators on the amplifier end panel

Specifications:

• CLASS
  Class A/B
• VARIABLE VOLTAGE
  6V - 0.2V
• SIGNAL TO NOISE
  >90dB
• FREQUENCY RESPONSE
  10Hz-45KHz
• CROSSOVER
  VeraCross
  Switchable
  FULL / HPF
• VARIABLE HIGH PASS CROSSOVER 12DB PER OCTAVE
  CH3 & CH4
  Switchable
  HPF/LPF/FULL
  HPF
  60Hz - 1.2kHz
• VARIABLE LOW PASS CROSSOVER 12DB PER OCTAVE
  CH1 & CH2
  LPF 60Hz - 1.2kHz
  CH3 & CH4
  Switchable
  HPF/LPF/FULL
  LPF
  30Hz - 250Hz
• BASS BOOST
  Switchable
  12 / 6 / 0dB
• POWER @ 1 OHM
  N/A
• POWER @ 2 OHMS
  4 x 250 Watts
• POWER @ 4 OHMS
  4 x 125 Watts
• MONO BRIDGED @ 4 OHMS
  2 x 500 Watts
• TOTAL CHANNELS
  4
• AUDIO INPUTS
  RCA
• AUDIO OUTPUTS
  Full Range
  RCA
• SPEAKER TERMINAL WIRE GAUGE
  Spade Connector
  Recommended
• FUSING
  15Ax2
• TOTAL HARMONIC DISTORTION (THD)
  <0.05%
