Aquatic AV AD600.5 5/4/3-Channel Class D Waterproof 4 Ohms 600 Watt Amplifier

Features:

• 600 Watt Amplifier With 600W of pure power, this 5-channel amplifier packs a serious punch even in the loudest of environments.
• Digital (Class D) Technology Digital (Class D) amplifiers produce less heat, lowering power consumption and reducing strain on batteries.
• Gain Controls This device comes with gain controls to match the output of the stereo to the amplifier.
• Shockwave Technology Shockwave technology reduces unwanted EMI (Electromagnetic Interference) to prevent unwanted noise in your audio system.
• Bridge Mode Bridge Mode allows the power of each channel to be combined for maximum output; this mode is ideal for use with a single subwoofer.
• Various of Applications Designed to support a variety of applications, this amplifier runs at both 4ohms and 2ohms. Running 2ohm configurations is ideal for powering more speakers, making it a great choice for environments with high background noise.
• Multi-Environment Protection This device is fully waterproof (rated IP65) and UV/salt/fog resistant to ensure reliable performance even in the toughest conditions.
• 2 Year Warranty This product comes with a two year warranty that can be extended with online product registration or by downloading the Aquatic AV App.

Specification:

• Type: Class D Digital Amplifier
• Color: Blue
• Output Modes: Mono, Stereo, Bridge
• Waterproof: Yes – IP65
• Conformal Coated PCB: Yes
• Heavy Duty Waterproof Connectors: Yes
• Input Channels: 5x RCA
• Speaker Level Input: 5 channels
• Output Channels: 5/4/3
• Input Impedance: 22k (RCA), 470 Ohms (speaker)
• Output impedance (per channel): 4 Ohms / 2 Ohms
• Power Output (max): 600W
• Power Output (max) @ 4 Ohms, ≤1% THD:    4x 50W + 1x 200W
• Power Output (max) @ 2 Ohms, ≤1% THD:    4x 75W + 1x 300W
• Power Output – Bridged @ 4 Ohms, THD ≤1%: 2x 150W
• S/N (A-weighted, 1W @ 4 Ohms): ≥70dB
• Frequency Response: 10-20kHz (1CH to 4CH), 10-250Hz (5CH)
• Channel Separation: ≥48dB
• Input Sensitivity (Low Level): 200mV to 4V
• Input Sensitivity (High Level): 600mV to 10V
• Bridge Mode: Yes (CH1 – CH4)
• Bass Boost Adjustment: Variable 0 to +18dB (Sub CH)
• Bass Boost Frequency: 50Hz
• High Pass Electronic Crossover (12dB/Oct.): Variable 50 – 250Hz
• Low Pass Electronic Crossover (12dB/Oct.): Variable 50 – 250Hz
• Current Draw: <2mA standby
• Gain Control Type: Variable Gain Control
• Ground Loop Isolation Input Circuit: Yes
• Allowable Battery Voltage 10.8V – 15.6V
• Power Fuse: Yes in Power Cable

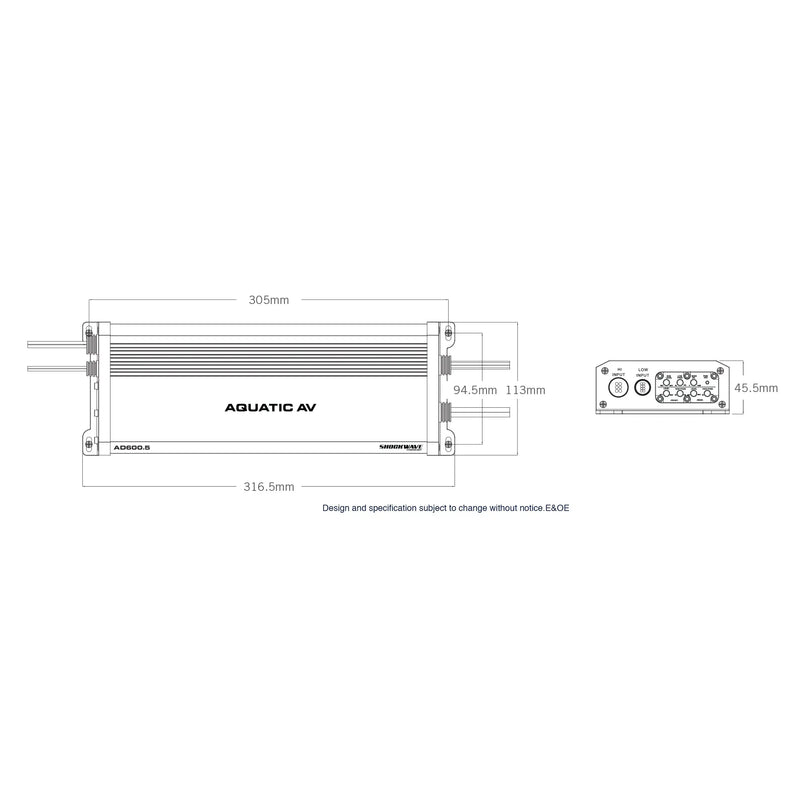

• Dimensions (WxDxH): 316.5 x 113 x 45.5mm
• Additional Features: Nickel plated connectors, LED Indicator, Remote Turn-On & Turn-On/Off Muting Circuit (Soft Mute)

• Waterproof Amplifier
• Four (4) Stainless Steel Self Tapping Mounting Screws
• User/Installation Manual
