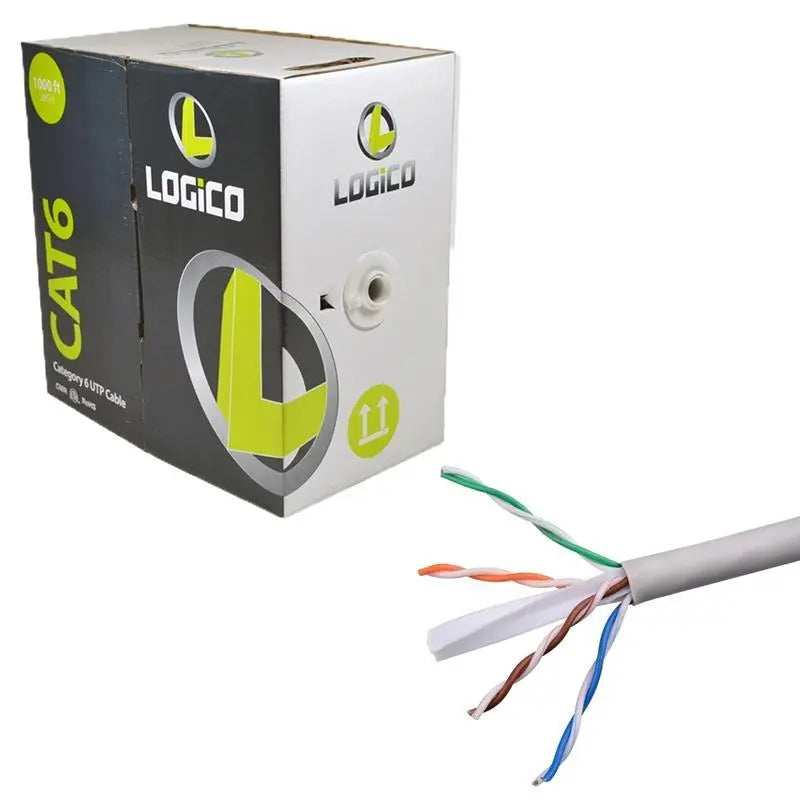

CAT6 CMR UTP Solid Copper 1000ft 23AWG 550MHz Gray Network Data Cable

CAT6 CMR UTP Solid Copper 1000ft 23AWG 550MHz Gray Network Data Cable Logico
Disponibilidad:
Stock bajo
$0.00 - $0.00
$0.00
$159.95
$159.95 - $159.95
$159.95

CAT6 CMR UTP Riser Bare Copper 1000ft 23AWG 550MHz Gray Network Cable

  • Category-6 Unshielded Twisted Pair High-Performance Data Cable
  • 23AWG Solid Copper Conductors
  • 8 Conductor Solid Bare Copper
  • Polyethylene (PE) Insulation Material
  • CMR Rated
  • PVC Jacket
  • Tested up to 550Mhz
  • Easily Identified Color-Striped Pairs
  • C(ETL) Listed FT4
  • TIA/EIA-568B.2, ISO/IEC 11801
  • Ethernet 10BASE-T, 100BASE-TX, 100BASE-VG, 100BASE-T4
  • 1000 Mbps 1000BASE-T Gigabit Ethernet (IEEE 802.3)
  • ETL Listed
  • Gray Color
  • 1000ft Pull Box

Specifications

  • Conductor Pairs: 4
  • Conductor AWG: 23
  • Conductor Stranding: Solid
  • Conductor Material: Solid Annealed Bare Copper
  • Insulation Material: Polyethylene
  • Insulation Diameter: 1.02 ± 0.03

Pair Color Code

  • Pair 1: White/Blue Stripe & Blue
  • Pair 2: White/Orange Stripe & Orange
  • Pair 3: White/Green Stripe & Green
  • Pair 4: White/Brown Stripe & Brown

Outer Shield Material: Unshielded
Outer Jacket Material: Flame Retardant PVC
Outer Jacket Diameter: 6.0 ± 0.3
Rip Cord: Yes
Color: Gray
Temperature Rating (Installation): 0 to + 60°C
Temperature Rating (Operating): -20°C to + 75°C

Electrical Characteristics

  • DC resistance: Max 9.38 O / 100 m
  • Mutual capacitance: Max 5.6 nf / 100 m
  • Resistance unbalance: Max 5 %

Technical Data

  • Standard Certification: CMR, ETL Listed
  • Reference Standard: EIA/TIA 568 & ISO/IEC 11801
