Axxess AX-LOC4.4-PRO 4CH Active Line Output Converter with Bass Boost

Axxess AX-LOC4.4-PRO 4CH Active Line Output Converter with Bass Boost
Disponibilidad:
Stock bajo
$119.99 - $119.99
$119.99
$119.99 - $119.99
$119.99

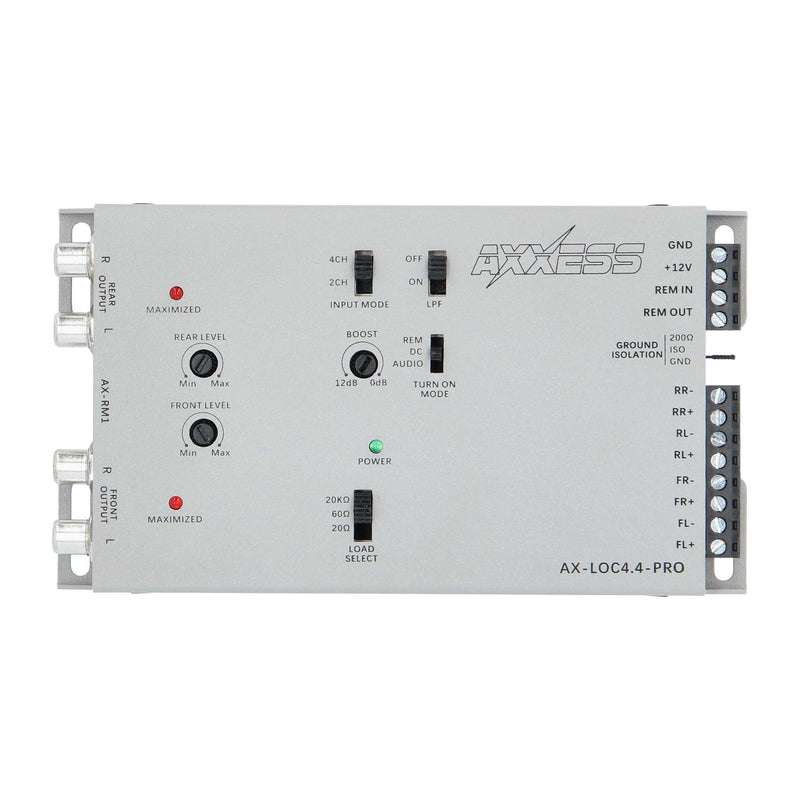

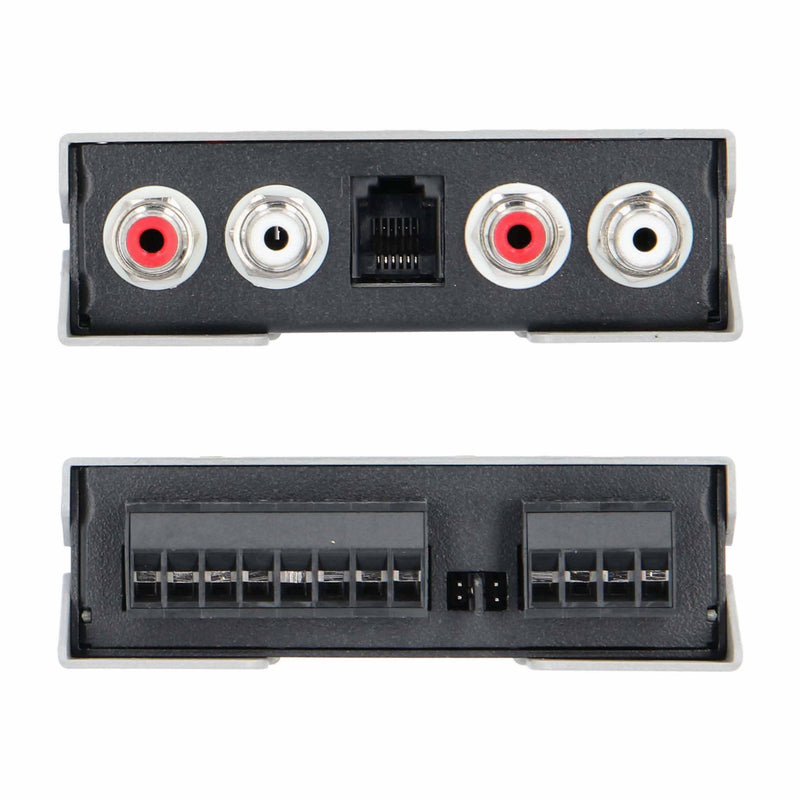

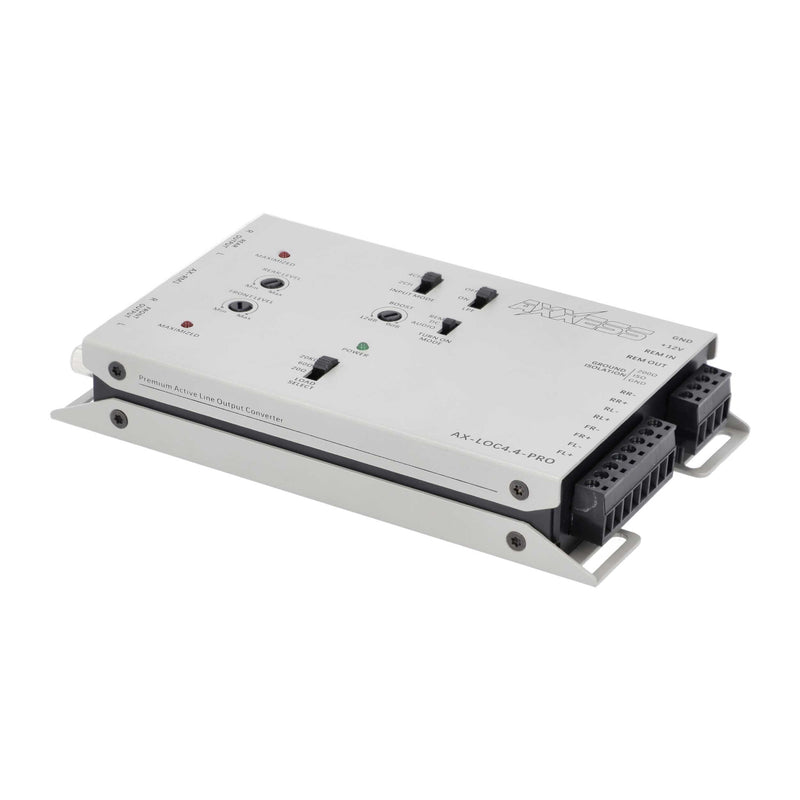

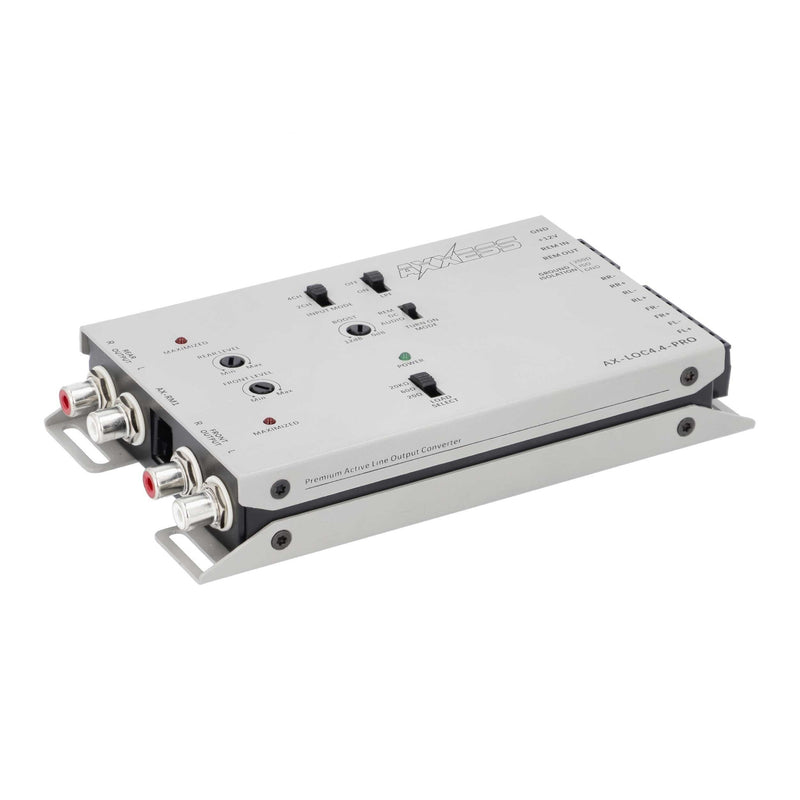

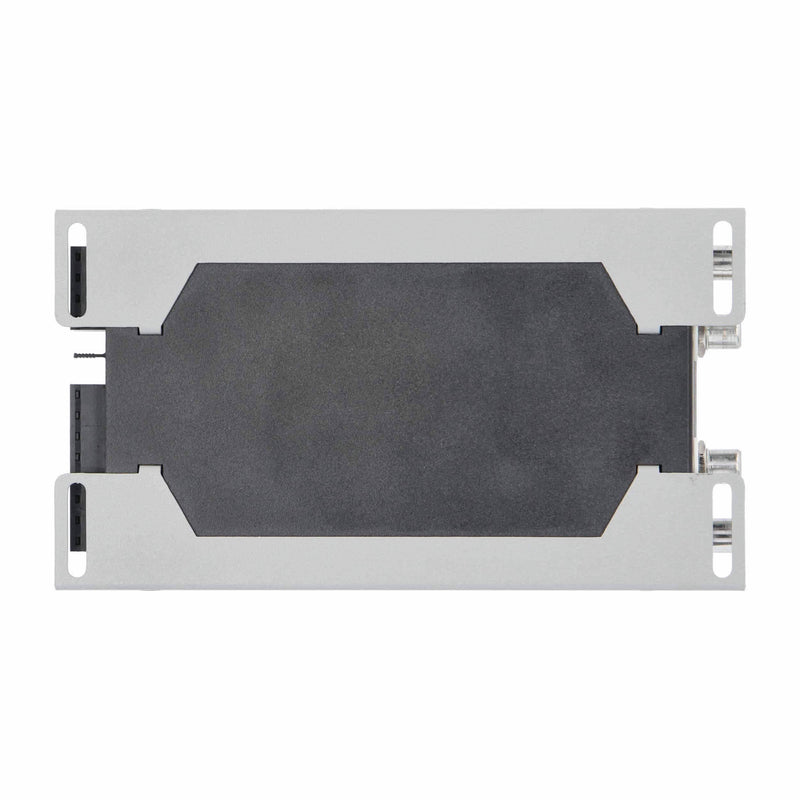

Axxess AX-LOC4.4-PRO 4CH Active Line Output Converter with Bass Boost

This 4-channel Active LOC with Bass Boost from Axxess has universal applications and enables installers to add aftermarket amplifiers to OEM source units for enhanced sound quality. This advanced technology features incredible input power capabilities, a load selector, clip indicator, enhanced output controls, and noise isolation countermeasures. Add the AX-RM1 external bass knob for additional subwoofer adjustments. This supplemental product will directly plug into the Axxess PRO series LOC’s and Line driver.

  • 4-channel: 4 in, 4 out
  • Line driver
  • Max input level: 40V / 400W @20K Ohm
  • Operating voltage: 9V-16V
  • Trigger selection: REM / DC / AUDIO
  • Turn on trigger (DC): 3V-7V
  • Output max @13.8V: 9.5V RMS
  • Input impedance selection: 20 / 60 / 20k Ohm
  • Ground selection: GND / ISO / 200 Ohm
  • Gain adjustment: – 28dB to +1dB
  • Input sensitivity: 0.5V-20V
  • Signal to noise: >110dB @6.4V output
  • THD+N (Total Harmonic Distortion): <0.01%
  • Frequency response: 20Hz-20kHz
  • Low pass filter: <250Hz (rear channels)
  • Bass Boost: 0dB + 12dB (rear channels)
  • Remote control (sold separately): optional AX-RM1

  • Channels: 4 IN - 4 OUT
  • Max Input Level (20kOhm): 40V / 400W @20K Ohm
  • Operating Voltage: 9V - 16V
  • Trigger Selection: REM / DC / AUDIO
  • Turn On Trigger (DC): 3V - 7V
  • Output Max@13.8V: 9.5V RMS
  • Input Impedance Selection (Speaker Level): 20 / 60 / 20k Ohm
  • Input Impedance (RCA Level): N/A
  • Ground Selection: GND / ISO / 200Ohm
  • Gain Adjustment: - 28dB to +1dB
  • Input Sensitivity: 0.5V - 20V
  • Signal to Noise: >110dB @6.4V Output
  • THD+N(Total Harmonic Distortion)": <0.01%
  • Frequence Response: 20Hz - 20kHz
  • Low Pass Filter: < 250Hz (Rear Channels)
  • Clip Indicator: YES
  • Bass Boost: 0dB + 12dB (Rear Channels)
  • Remote Control: Optional AX-RM-1
  • Remote Control w/Voltmeter: N/A
