Klipsch CDT-5800-C II 8" 200W Max Power In-ceiling Speaker White (each)

Klipsch CDT-5800-C II 8" 200W Max Power In-ceiling Speaker White (each)
Availability:
in stock, ready to be shipped
$169.00 - $169.00
$169.00
$169.00 - $169.00
$169.00

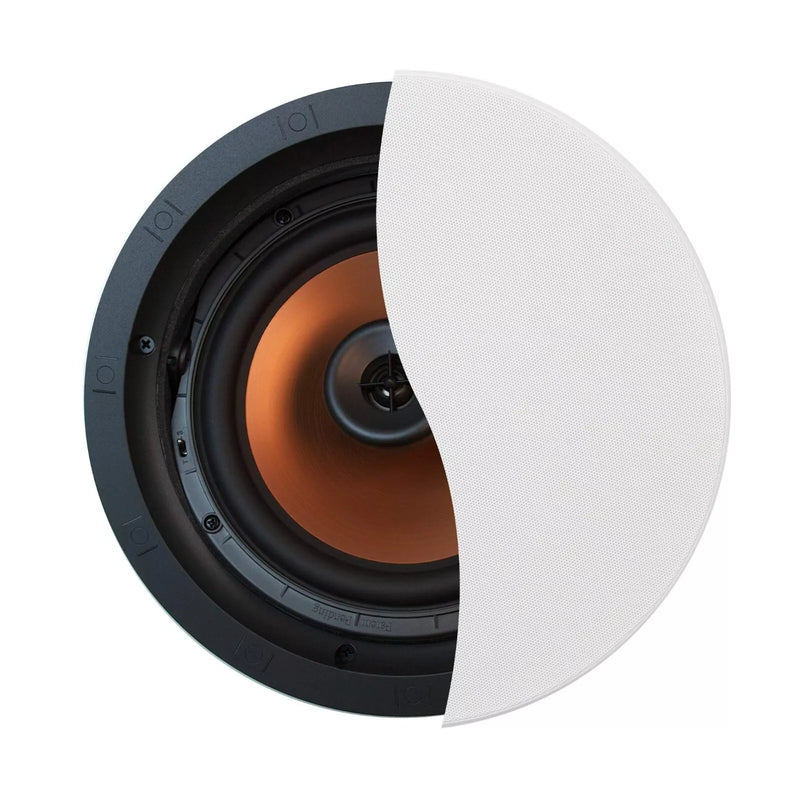

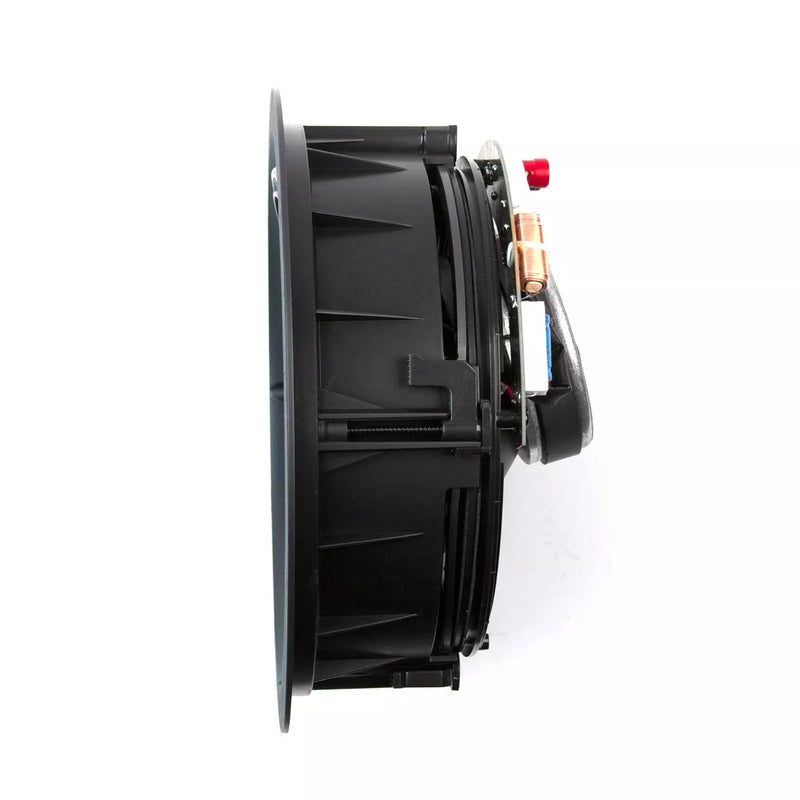

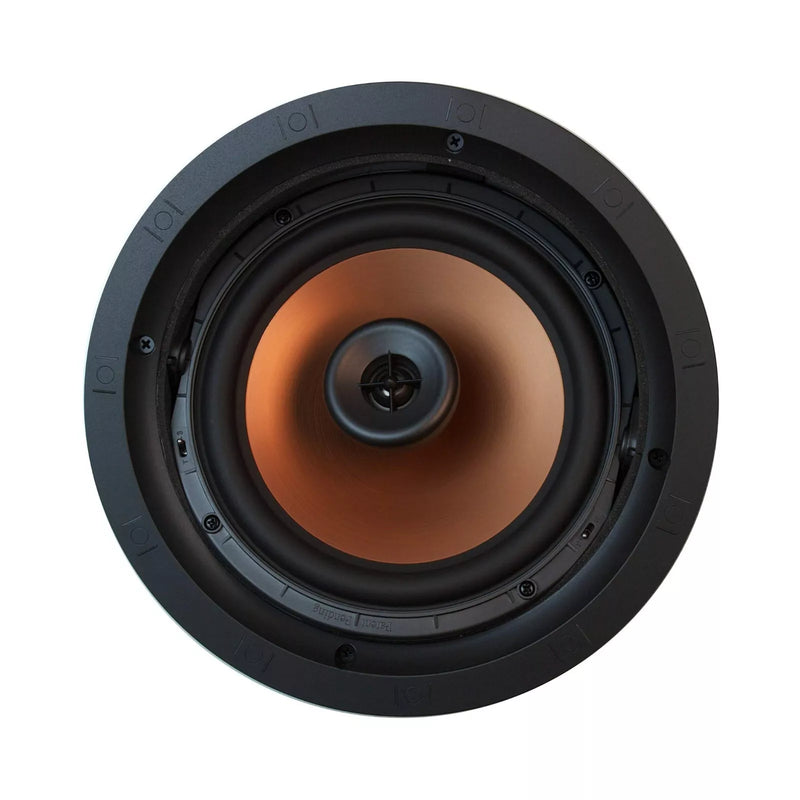

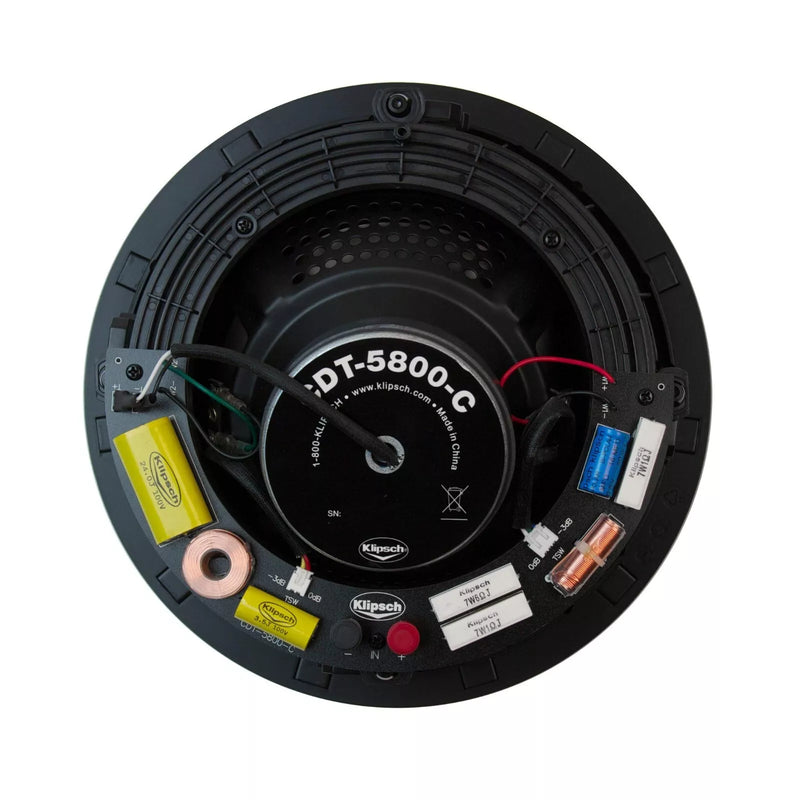

Klipsch CDT-5800-C II 8" 200W Max Power In-Ceiling Speaker White (each)

The Klipsch CDT-5800-C II is a state-of-the-art in-ceiling loudspeaker designed to overcome the limitations of fixed locations through its Controlled Dispersion Technology (CDT). This patent-pending gimbal mechanism allows high and low frequencies to be directed toward the listening area, ensuring an accurate sound with less reflection. The speaker features a 100-degree Titanium compression driver with a symmetrical Tractrix® Horn and an 8-inch Cerametallic™ woofer that can rotate 360 degrees and tilt 15 degrees. Enhanced with a Linear Travel Suspension for the tweeter, it delivers detailed and smooth high frequencies. The CDT-5800-C II is also equipped with a premium network and adjustable treble and bass, offering unparalleled audio excellence. It comes in a paintable white finish and is compatible with the Klipsch IK-800-C installation kit and ME-800-C fire-rated speaker enclosure, both sold separately.

  • 1" titanium tweeter with swiveling Tractrix® horn
  • pivoting 8" Cerametallic™ woofer
  • power handling: up to 50 watts RMS (200 watts peak)
  • frequency response 49-23,000 Hz (±3dB)
  • sensitivity 95 dB
  • 8-ohm impedance

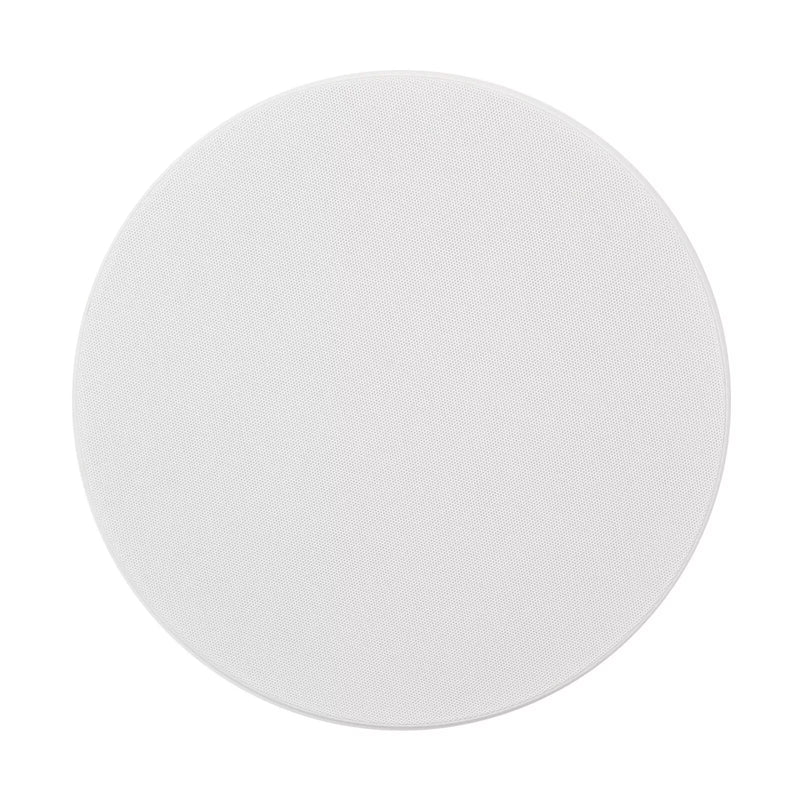

  • paintable SlimTrim™ magnetic grille
  • treble and mid-bass attenuation switches
  • cutout dimensions: 9-13/16" diameter
  • mounting depth: 5-1/8"

Docs/Instruction Links:

Specifications:

Frequency Response - 49Hz-23KHz ± 3dB
Sensitivity - 95dB @ 2.83V / 1m
Nominal Impedance - 8 ohms compatible
Crossover Frequency - 2230Hz
Power Handling - 50W RMS / 200W Peak Recommended Amplifier
Power - 100 W
High Frequency Driver - 1” (2.54cm) Titanium diaphragm compression driver
mated to a swiveling 100° round Tractrix® Horn
Low Frequency Driver - 8" (20.32cm) pivoting Cerametallic™ cone woofer
Enclosure - Material/Type ABS/Infinite baffle, front flush with wall
Wire Gauage Accommodated - 12 ga
Diameter - 11" (27.94cm)
Cutout Dimensions - 9.8" (24.89cm)
Mounting Depth - 5.4" (13.72cm)
Weight - 7.4 lbs. (3.36kg)
Finish - White paintable frame and grille
Installation Kit - IK-800-C (sold separately)
Fire Rated Enclosure - ME-800-C (sold separately)
