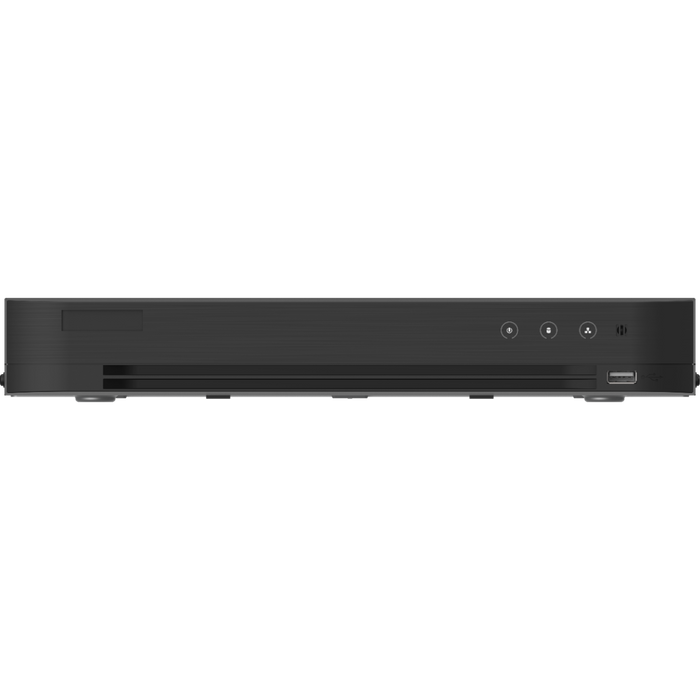

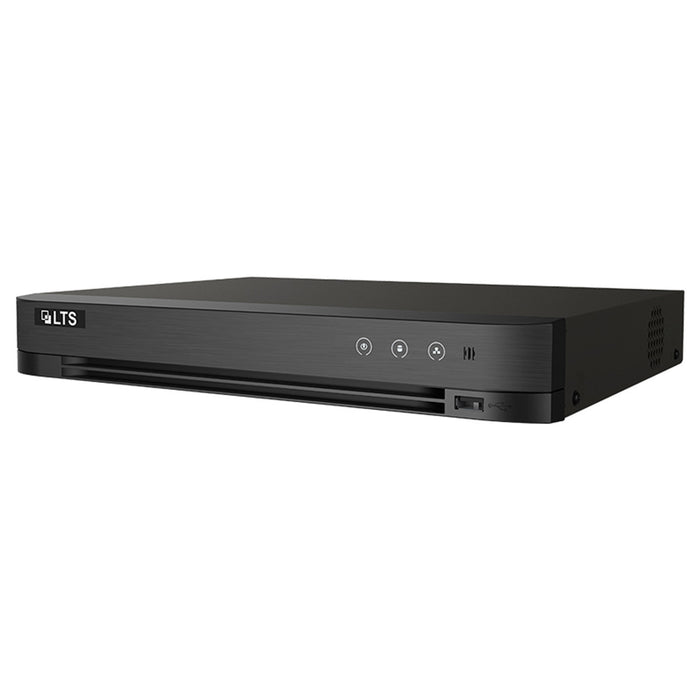

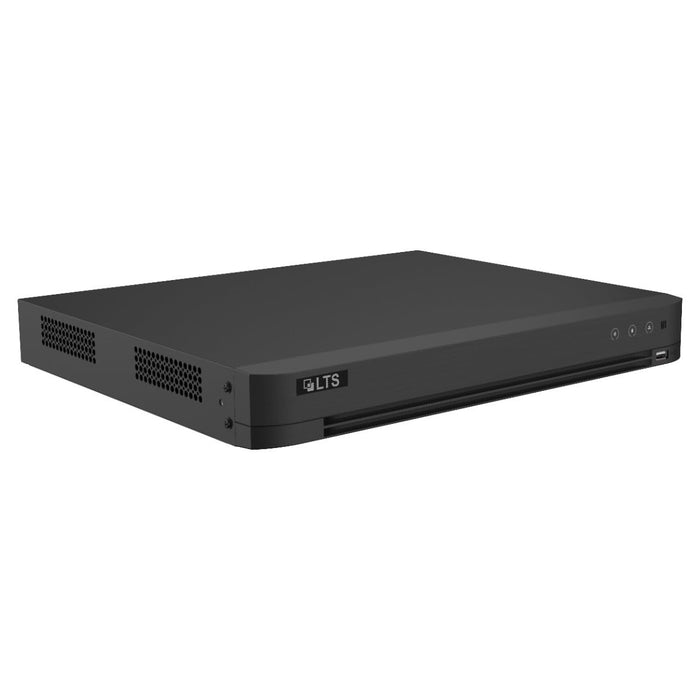

LTS LTD8308M-ETC 8-Channel H.265+ HD-TVI DVR with 2TB Pre-Installed Storage

LTS LTD8308M-ETC 8-Channel H.265+ HD-TVI DVR with 2TB Pre-Installed Storage
Availability:
Out of stock
Sold out
$0.00 - $0.00
$0.00
$226.95
$226.95 - $226.95
$226.95

LTS LTD8308M-ETC 8-Channel H.265+ HD-TVI DVR

The LTD8308M-ETC Platinum Professional Level 8 Channel HD-TVI DVR - Compact from LTS has a compact design and supports H.265+/H.265/H.264 Zip+/H.264 video comrpression. It has an 8 Channel Video Recorder and works with TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1). Other features include live view, storage, playback up to 8 HD-TVI/ analog cameras + 1 IP camera up to 4MP.

Features:

  • 8 Channel Video Recorder
  • No HDD Included
  • Compact Case H.265/H.265+
  • Support TVI/ AHD/ ANALOG/ CVI/ IP input (5 in 1)
  • 1st and 2nd channel support up to 3MP HD-TVI input
  • Support Live View, Storage, Playback up to 8 HD-TVI/ Analog Cameras + 1 IP Camera up to 4MP
  • Up to 1080P (1920*1080) HDMI Video Output
  • CVBS Output
  • 1x SATA slot, up to 6TB each HDD
  • 2x USB 2.0

Specifications:

Video / Audio Input

  • Video compression: H.264
  • HD-TVI video input: 8-channel
  • Video input interface: BNC (1.0 Vp-p, 75 Ω), PAL / NTSC self-adaptive
  • IP input: 2ch(1080p@30fps)
  • Audio compression:  G.711u
  • Audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)
  • Two-way audio input: 1-ch, RCA (2.0 Vp-p, 1 kΩ)

Video / Audio Output

  • HDMI/VGA output    1920 × 1080 / 60 Hz,1280 × 1024 / 60 Hz, 1280 × 720 / 60 Hz, 1024 × 768 / 60 Hz
  • Encoding resolution: Main stream: 1080P(non-real-time) / 720P / VGA / WD1 / 4CIF / CIF
  • Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
  • Frame rate: Main stream: 1/16 fps ~ Real time frame rate
  • Sub-stream: 1/16 fps ~ Real time frame rate
  • Video bit rate: 32 Kbps-4 Mbps
  • Audio output: 1-ch, RCA (Linear, 1 kΩ)
  • Audio bit rate: 64 Kbps
  • Dual-stream: Support
  • Stream type: Video, Video & Audio
  • Synchronous playback: 8-ch
  • Playback resolution: 1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF

Network

  • Remote connection: 128
  • Network protocols: TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP™, HTTPS

Hard Disk

  • SATA: 1 SATA interface
  • Capacity: Up to 4TB capacity for each disk

External Interface

  • Network interface: 1:10M / 100M self-adaptive Ethernet interface

General

  • Power supply: 12V DC
  • Power Consumption: ≤ 20 W
  • Working temperature: -10 °C~+55°C(14°F ~ 131 °F)
  • Working humidity: 10% ~ 90%
  • Chassis: 1U chassis
  • Dimension: 315 × 230 × 45 mm (12.4" x 9.1" x 1.8")
