Earthquake Cinenova 12 6 Zones Multi-Room Audio 12-Channel Amplifier with subwoofer output

Earthquake Cinenova 12 6 Zones Multi-Room Audio 12-Channel Amplifier with subwoofer output
Availability:
Out of stock
Sold out
$1,399.00 - $1,399.00
$1,399.00
$1,399.00 - $1,399.00
$1,399.00

Earthquake Cinenova 12 6 Zones Multi-Room Audio 12-Channel Amplifier With 6 Subwoofer Output.

The Cinénova 12 is an industry-leading multi-channel amplifier crafted to transform your audio world. This high-efficiency digital Class D amplifier ensures premium sound quality and performance, featuring 12 channels/six stereo zones of unparalleled flexibility and customization. Its clever design easily facilitates the integration of passive and powered subwoofers, with each zone having its own dedicated low pass crossover, providing users with a more versatile option for an extremely broad range of audio applications.

The sleek and modern design of the Cinénova 12 amplifier makes it an attractive addition to single-source and distributed audio systems. Its user-friendly interface ensures seamless navigation and control, while advanced protection circuitry safeguards against damage to the unit and connected speakers for reliable operation and longevity. Versatile in functionality and packed with innovative features and outstanding performance, the Cinénova 12 stands as a premium amplifier worthy of investment for audiophiles and movie enthusiasts alike. Earthquake’s emphasis on value, performance, and versatility makes the Cinénova 12 a top contender in a crowded multi-room/zone audio solutions field.

  • 12-channel amplifier with 6 independent playback zones
  • Play the same source across all six zones or have a different source playing in each one
  • Ideal for custom multi-room/zone audio systems
  • Individually driven amplifier blocks (Class D output stage)
  • Bridgeable channel outputs for additional power when needed

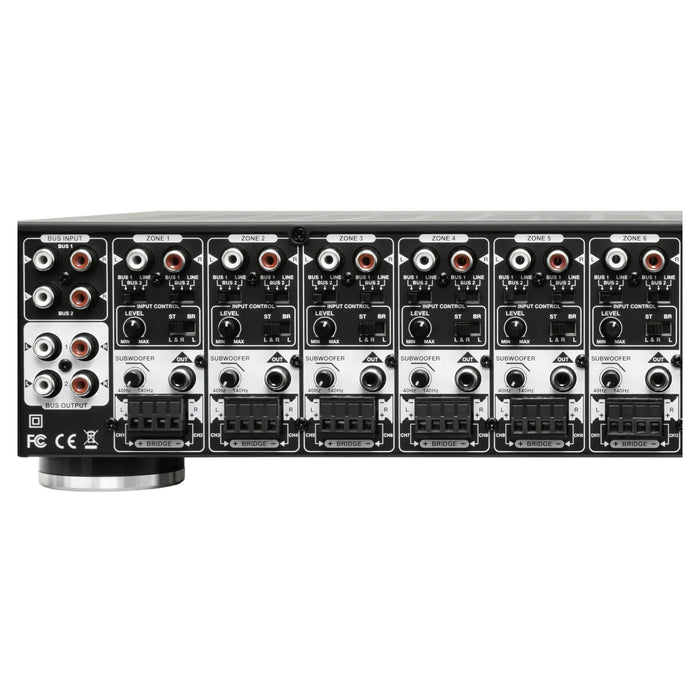

  • Independent Line and BUS RCA inputs
  • Subwoofer and BUS RCA outputs
  • BUS inputs have corresponding output that can be daisy-chained to another amplifier
  • Detachable Phoenix-style speaker terminals
  • Speaker level subwoofer compatibility
  • Independent level control per channel
  • Subwoofer crossover from 40Hz–140Hz
  • Manual, auto, or triggered on/off modes
  • 12V trigger input and output
  • 5.2V/2A USB ports for powering accessories
  • Installer-friendly design supports 2U rack space and tabletop mounting
  • Rack mounting ears included
  • Switchable 110V/220V input AC voltage
  • Ground lift selector

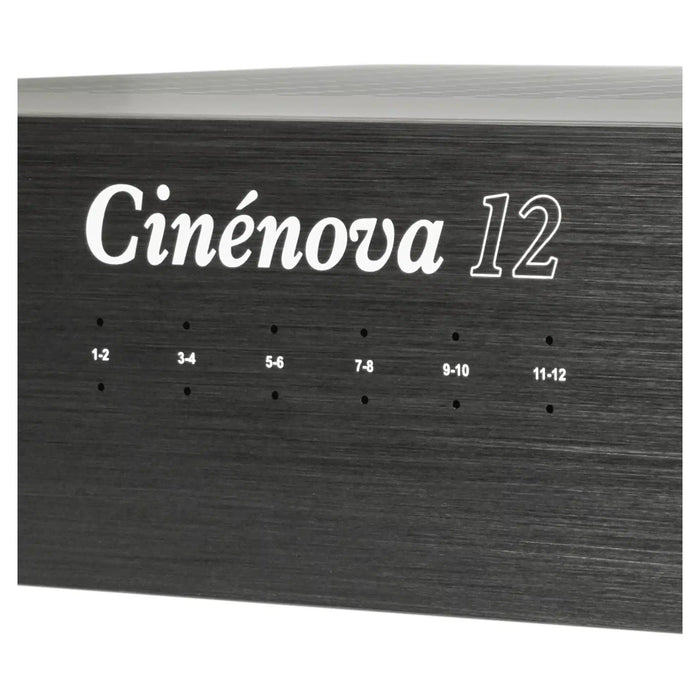

  • Front zone/channel status LED indicators
  • Multi-stage protection circuitry
  • Temperature-controlled cooling fans
  • Rack-mountable with included hardware

SPECIFICATIONS:

Weight: 38 lbs
Dimensions: 22 × 17 × 9 in
Number of Channels / Zones: 12 Channels / 6 Stereo Zones
Bridgeable: Yes
Amplifier Class: Class D
Rated Power Output Per Channel: 120W RMS x 12 into 4 ohms, 250W RMS x 6 into 8 ohms (Bridged)
Frequency Response: 20Hz–20kHz
Crossover Frequency (Low Pass): 40Hz–140Hz
Input Impedance: 20 kOhm
Signal-to-Noise Ratio: 110 dB
Total Harmonic Distortion: <0.003% @ 1kHz
Crosstalk: 110 dB Mono, 75 dB Stereo
Trigger In Voltage: 3.3–12V DC/AC
Trigger Out Voltage: 12V DC
Auto Off Delay Time: 15 min
Standby Power: 0.4W
Input Connections: 3.5mm mini jack, BUS RCA, Line RCA
Output Connections: 3.5mm mini jack, 5.2V USB, BUS RCA, High Level Speaker, Subwoofer RCA
Turn On Modes: Auto, On, Trigger
Rack Mountable: Yes
Rack Mount Spaces: 2U
Rack Width: 19 in.
Remote: N/A
App Control: N/A
LED Indicators: Master Power, Operational Status
Power Requirements: 115/230 VAC, 60/50 Hz
Chassis Material: Steel
Faceplate Material: Brushed Aluminum
Chassis Dimensions: 3.5 in. x 16.92 in. x 13.18 in. (89 mm x 430 mm x 335 mm)
Mounting Dimensions: 2.99 in. x 18.42 in. (76 mm x 468 mm)
Overall Dimensions: 4.13 in. x 19.13 in. x 13.67 in. (105 mm x 486 mm x 347 mm)
Unit Weight: 33 lb (15 kg)
