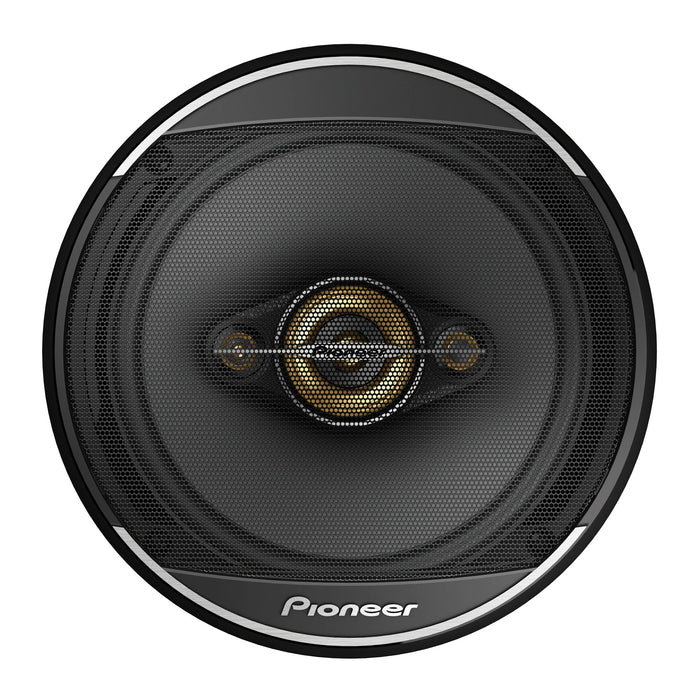

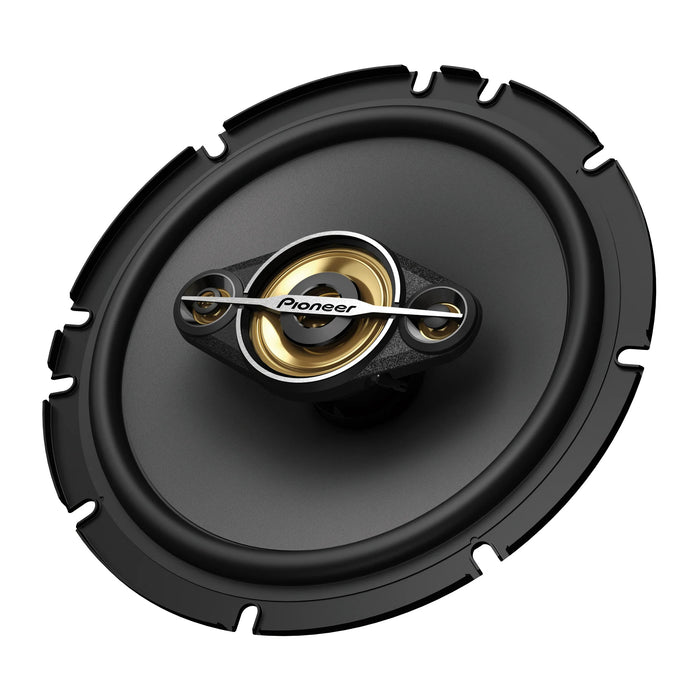

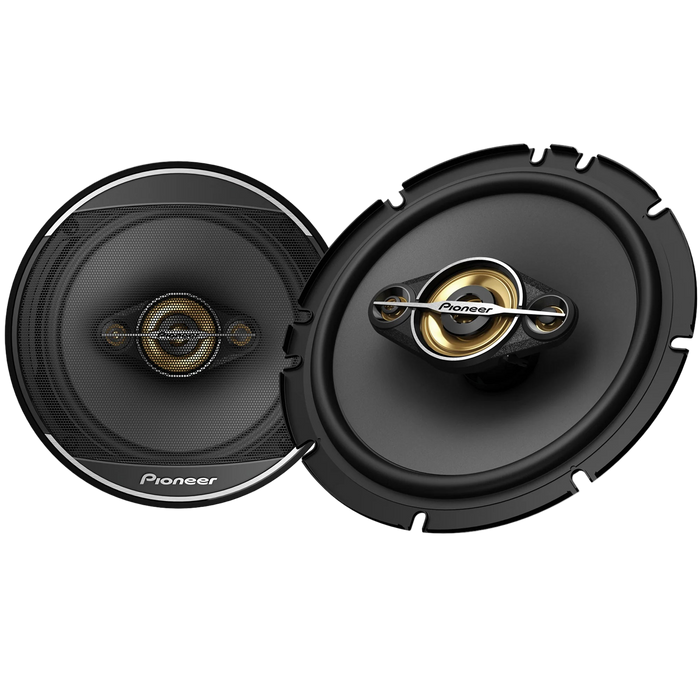

Pioneer TS-A1681F 6.5" 350 Watt 4-Way Full-Range Coaxial Car Speakers (pair)

Pioneer TS-A1681F 6.5" 350 Watt 4-Way Full-Range Coaxial Car Speakers (pair)
Availability:
in stock, ready to be shipped
$73.95 - $73.95
$73.95
$73.95 - $73.95
$73.95

6-1/2" - 4-way, 350 W Max Power, Carbon/Mica-reinforced IMPP™ cone, 11mm Tweeter and 11mm Super Tweeter and 1-5/8" Cone Midrange - Coaxial Speakers (pair)

The Pioneer TS-A1681F 6-1/2" 4-way Coaxial Speakers deliver an exceptional audio experience with a maximum power handling of 350 watts and 80 watts RMS. Featuring a carbon and mica-reinforced IMPP™ cone, these speakers ensure durability and superior sound quality. The 11mm tweeter and super tweeter, along with a 1-5/8" polyetherimide cone midrange, provide clear and dynamic sound across a wide frequency range of 35 Hz to 29 kHz. With a sensitivity of 91 dB, these speakers are designed for high performance and efficiency. The package includes mounting brackets, protective grilles, and all necessary hardware for easy installation. Ideal for car audio enthusiasts, the TS-A1681F speakers offer a perfect blend of power, clarity, and reliability.

  • 350 Watts Max Power (80 Watts Nominal)
  • 11mm Tweeter and 11mm Super Tweeter
  • 1-5/8" polyetherimide cone midrange
  • 6-1/2" carbon and mica reinforced Injection Molded Polypropylene (IMPP) cone construction

Instruction Manual

Instruction Manual

System

  • System Type: 4-way Coaxial
  • Sound Pressure Level (Sensitivity): 91 dB (+- 1.5dB)
  • Frequency Range: 35 Hz to 29 kHz
  • Continuous Power Handling (RMS): 80 Watts
  • Maximum Peak Power Handling: 350 Watts
  • Nominal Impedance: 4 ohms

Woofer

  • Diameter: 6-1/2"
  • Cone Material: Carbon and mica reinforced IMPP
  • Surround Material: Elastic Polymer
  • Basket Material: Iron Plate Press
  • Magnet Material: Ferrite
  • Magnet Weight: 11.29 oz
  • Voice Coil Bobbin: Glass Imide
  • Voice Coil wire: Copper
  • Mounting Depth: 2-3/8" (Deep basket)

Tweeter

  • Type: Twin Polyethylene terephthalate (PET) dome
  • Diameter: 11 mm (Super) and 11 mm


  • Two 6-1/2" 4-way coaxial speakers
  • Two Pioneer Multi-Fit mounting brackets
  • Two protective Grilles
  • Two 12" lengths of speaker wire (female quick slides on one end and bare wire on the other)
  • Eight 3/4" Screws
  • Eight 3/8" Screws
  • Eight flat washers
  • Warranty information
  • Specs and template on box
